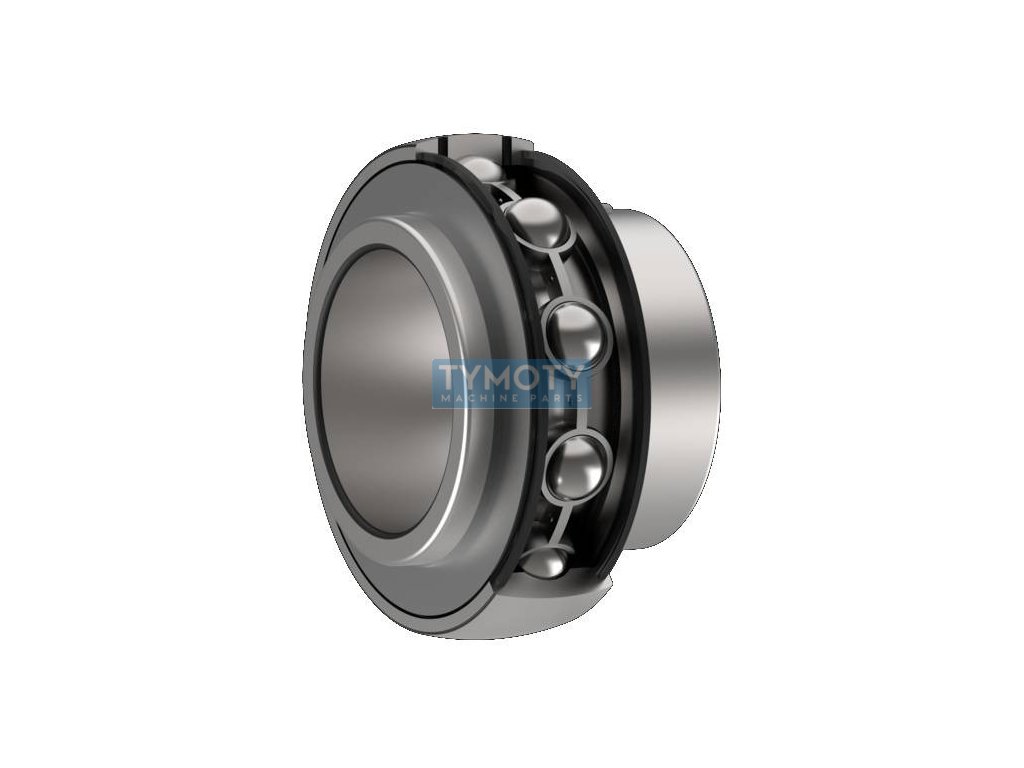

ZKL UC 215 clamping bearing

Product detailed description

ZKL UC 215 is a cylindrical bore clamping bearing designed for applications requiring reliable and precise mounting. The bearing has an inner diameter (d) of 75 mm, an outer diameter (D) of 130 mm and an overall width (B) of 77.8 mm, with an inner ring width (C) of 30 mm. The shape of the outer ring is spherical, which allows for compensation of misalignment between the shaft and the bearing housing, thereby increasing the service life and reducing the risk of premature wear.

The bearing material is high-quality steel, which guarantees high strength and wear resistance. The bearing is equipped with a double-sided seal that provides protection against dust and dirt, thereby contributing to extending the service life of the bearing and reducing the need for maintenance. The operating temperature range of the bearing is from -20 °C to +100 °C, which allows its use in various industrial applications, including those exposed to slight temperature fluctuations.

ZKL, as a manufacturer, is known for its precision manufacturing and reliability, which ensures that the UC 215 bearing is suitable for a wide range of applications where high precision and reliability are required. This type of bearing is often used in agricultural machinery, transport equipment and other industrial applications where it is necessary to ensure a firm and stable shaft fixation.
