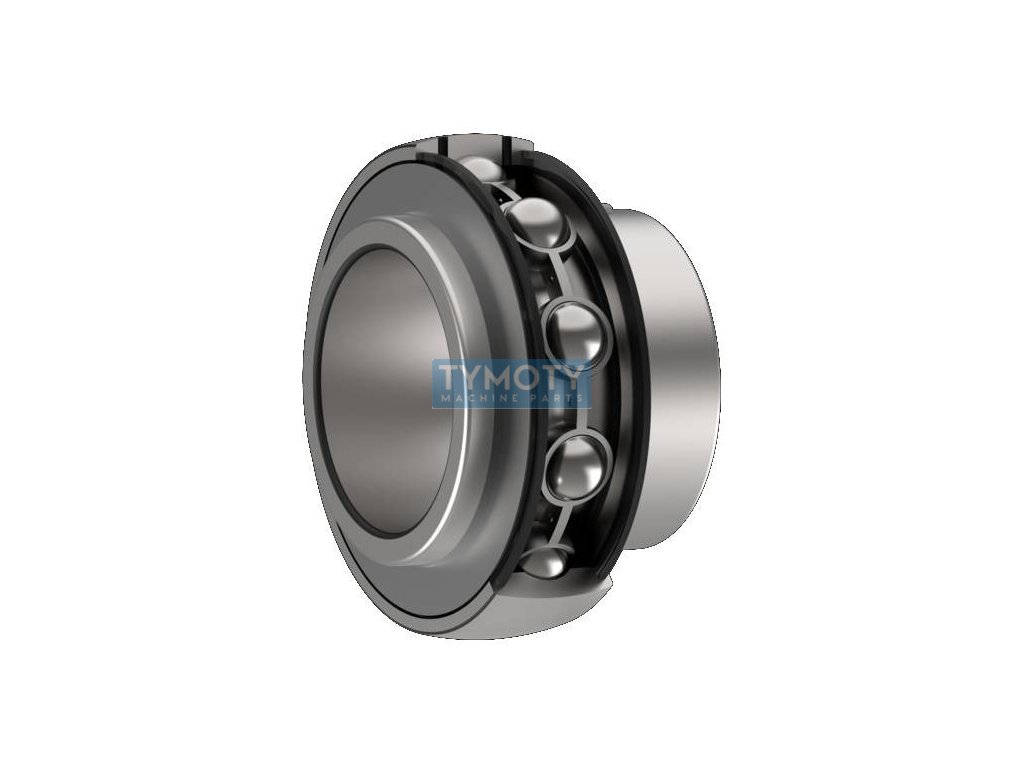

ZKL UC 209-3L clamping bearing

Product detailed description

The ZKL UC 209-3L clamping bearing is specially designed for applications requiring reliable and precise shaft positioning. This bearing is produced by the renowned manufacturer ZKL and is characterized by its robust construction and high quality materials.

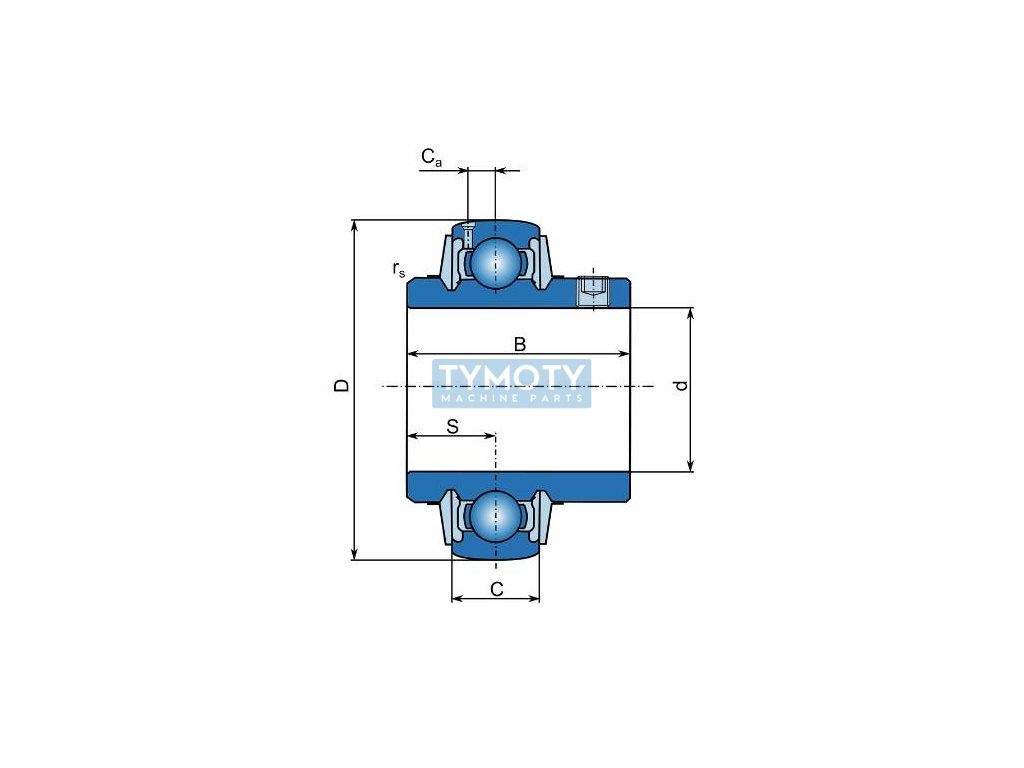

The bearing has an inner diameter (d) of 45 mm, an outer diameter (D) of 85 mm and an overall width (B) of 49.2 mm. The width C is 22 mm, which provides sufficient stability and support for various applications. The inner profile of the bearing is cylindrical, which allows easy mounting on the shaft. The outer ring has a spherical shape, which allows for compensation of misalignment between the bearing and the bearing housing.

The material used to manufacture the bearing is high-quality steel, which guarantees long service life and resistance to mechanical wear. The bearing is equipped with a double-sided three-lip seal, which provides effective protection against dust and dirt, thus extending its service life and reducing the need for maintenance.

The operating temperature range of the bearing is from -20 °C to +100 °C, which allows it to be used in a wide range of industrial applications. The bearing is ideal for applications where high reliability and precision are required, such as conveyor systems, agricultural machinery and various industrial equipment.

ZKL UC 209-3L is an excellent choice for professionals looking for a reliable and durable solution for their technical applications, while its design features guarantee optimal performance and long-term reliability.
