ZKL UC 208 clamping bearing

Product detailed description

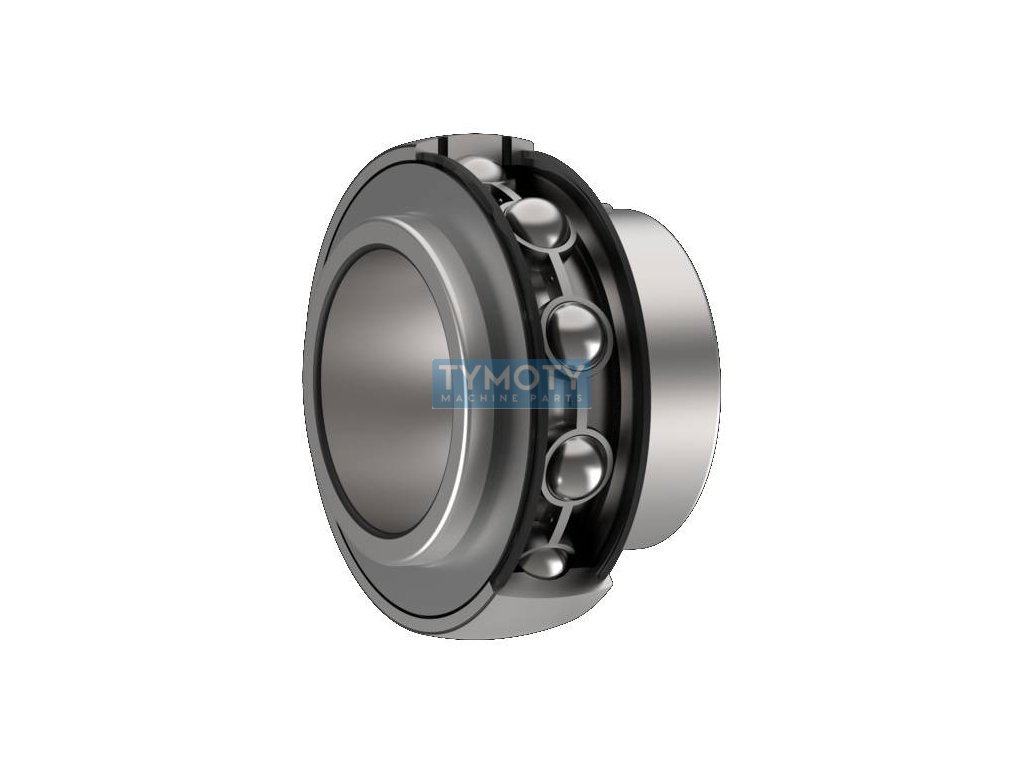

ZKL UC 208 is a clamping bearing designed for applications where reliable and precise support of rotating parts is required. This bearing has an inner diameter (d) of 40 mm, an outer diameter (D) of 80 mm and an overall width (B) of 49.2 mm, with an inner ring width (C) of 21 mm. The bearing is made of high-quality steel, which guarantees high strength and wear resistance.

ZKL UC 208 is characterized by the shape of the outer ring, which is spherical, which allows for compensation of misalignment between the bearing and the shaft. The hole profile is cylindrical, which is a standard shape for easy mounting on the shaft. The bearing is equipped with a double-sided seal that provides protection against dirt and contamination, thereby extending the bearing life and reducing the need for maintenance.

This bearing is suitable for operation in the temperature range from -20 °C to +100 °C, which allows its use in various industrial applications. ZKL, as a manufacturer, is known for its reliability and quality, which makes the UC 208 an ideal choice for applications requiring high precision and resistance to mechanical stress. Clamping bearings of this type are often used in agricultural machinery, conveyors and other equipment where it is necessary to ensure stable and reliable rotation of components.
