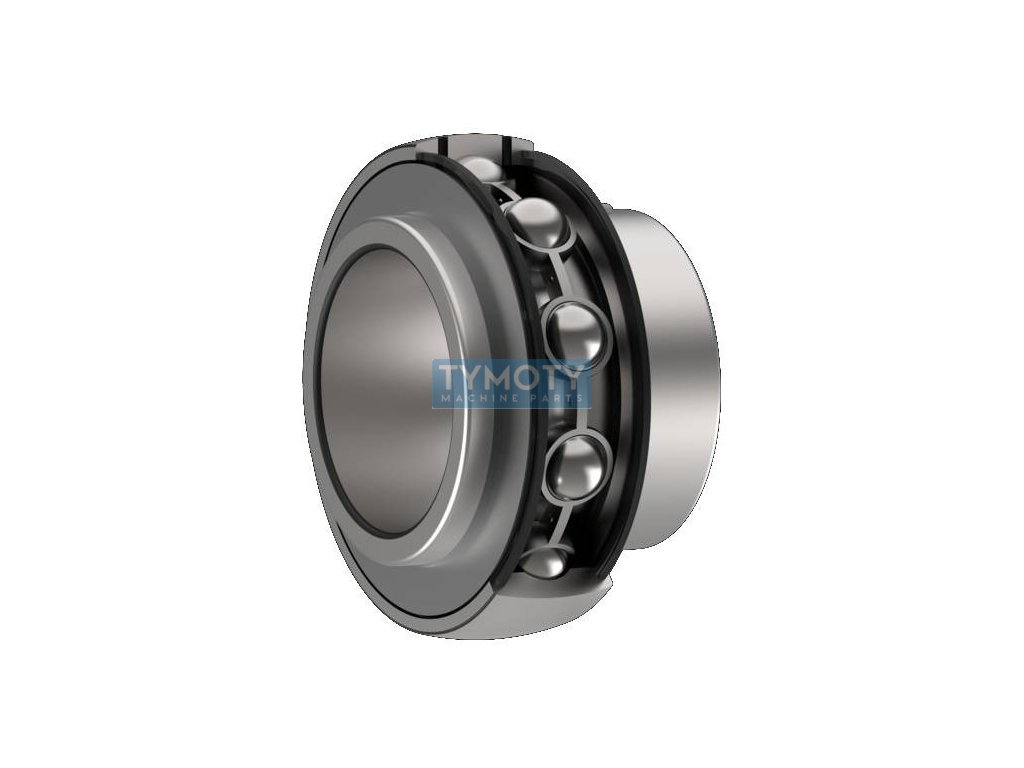

ZKL UC 208-3L clamping bearing
Code: 691066
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > ball clamp > extended on both sides with screws > 200 series (YAR, GYE, LE, UC) > d = 40 mm |
|---|---|
| Weight: | 0.55 kg |
| Diameter D (mm): | 80, 40 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | ZKL |
| Material: | steel |
| Maximum temperature °C: | +100 |
| Minimum temperature °C: | -20 |
| Seal: | two-sided three-edged |
| The shape of the outer ring: | spherical |
| Width B (mm): | 49,2 |
| Width C (mm): | 21 |
| Značení: | UC 208-3L |
| Typ: | upínací ložisko |
