ZKL NJ 205 E C3 roller bearing

Product detailed description

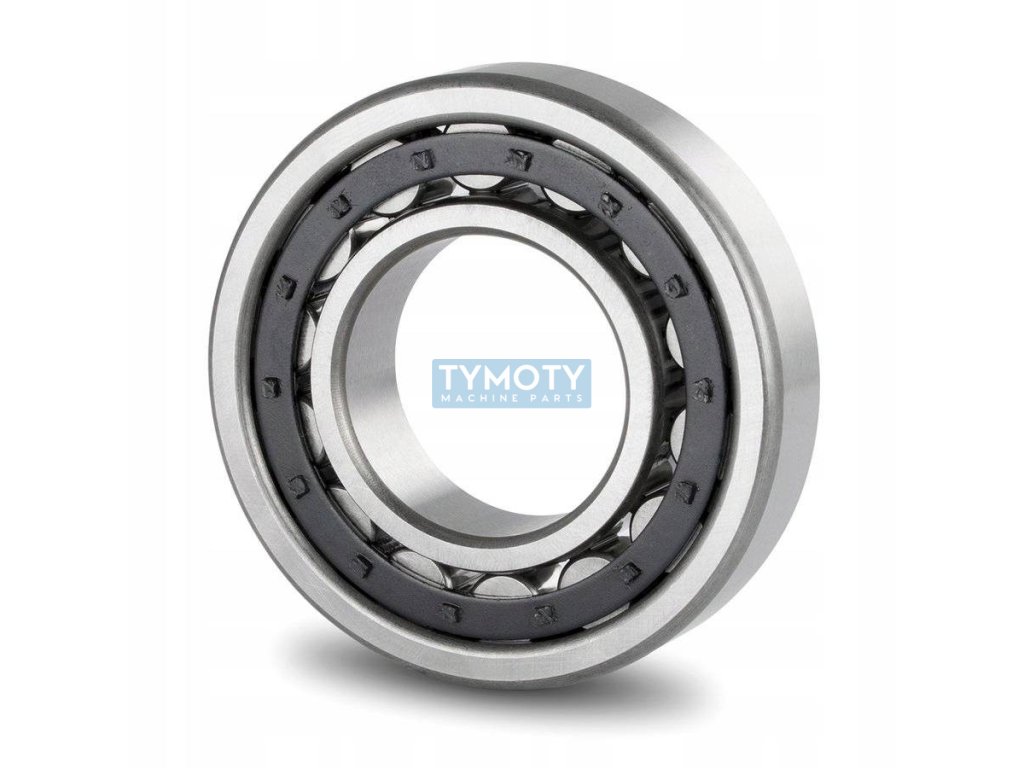

The ZKL NJ 205 E C3 cylindrical roller bearing is designed for applications requiring high load capacity and precision. This bearing belongs to the category of cylindrical roller bearings with a single row of rollers, which are characterized by the ability to carry high radial loads.

The bearing has an inner diameter (d) of 25 mm, an outer diameter (D) of 52 mm and a width (B) of 15 mm. These dimensions are standardized and allow easy integration into various mechanical assemblies. The hole profile is cylindrical, which simplifies assembly on the shaft.

The NJ 205 E C3 model is equipped with a steel cage, which ensures optimal roller guidance and increases the bearing's resistance to dynamic loads. The bearing is supplied without a seal, which is suitable for applications where protection against external contaminants is not required or where an external seal is provided.

The C3 specification indicates increased internal clearance of the bearing. This property is important in applications where thermal expansion occurs or where high speeds are present, as it allows compensation for dimensional changes and reduces the risk of seizure.

The ZKL NJ 205 E C3 bearing is suitable for use in various industrial sectors, including machine building, the automotive industry and other applications where high demands are placed on the reliability and performance of roller bearings.
