ZKL 634-2ZR deep groove ball bearing
Code: 310493
Product detailed description

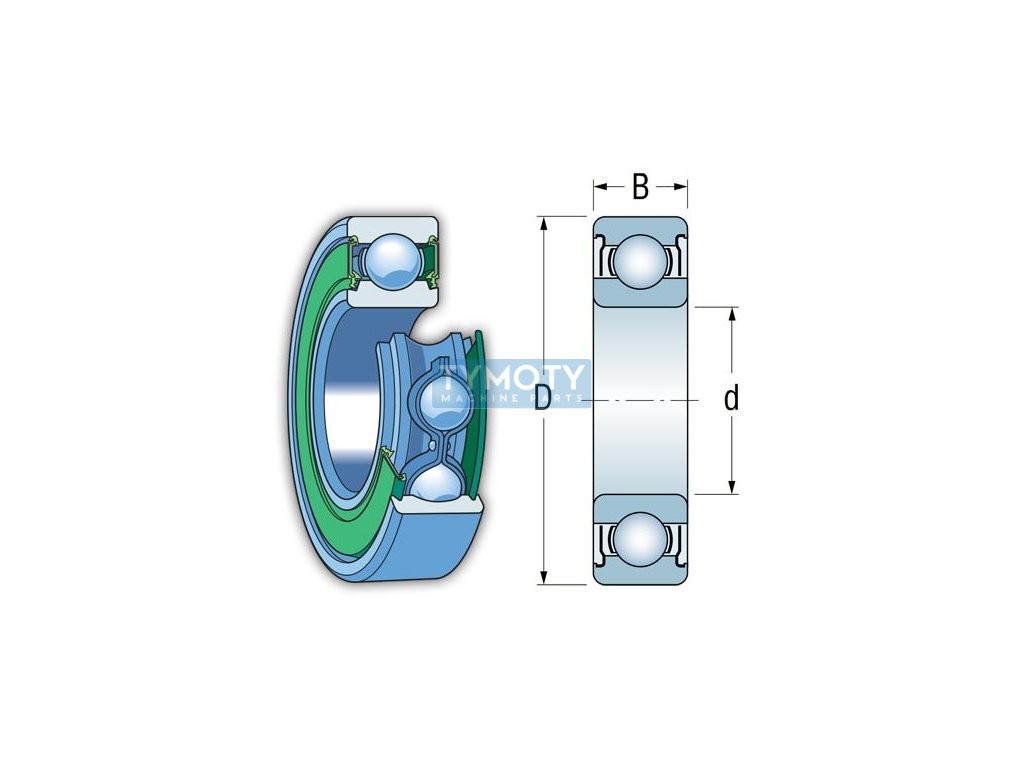

ZKL bearing 634 2ZR - non-separable single-row radial ball bearing with a steel cage guided by balls with a non-contacting sheet metal seal on both sides and normal radial clearance. The cover plates of the 634-2Z bearing are pressed into grooves on the outer ring and fit against the smooth inner ring. The 634 2Z bearing is designed for mounting with a rotating inner ring and is filled with high-quality lubricant with a temperature range from -30°C to +110°C for the entire service life of the bearing. If the outer ring rotates, lubricant may leak at higher speeds.Additional parameters
| Category: | Bearings > ball > miniature d=0.6 to 9mm > d = 4 mm > 634 (D=16 B=5) |
|---|---|
| Weight: | 0.005 kg |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 16, 4 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | ZKL |
| Material: | steel |
| Seal: | double-sided - sheet metal |
| Width B (mm): | 5 |
| Značení: | 634-2ZR |
| Typ: | kuličkové ložisko |
