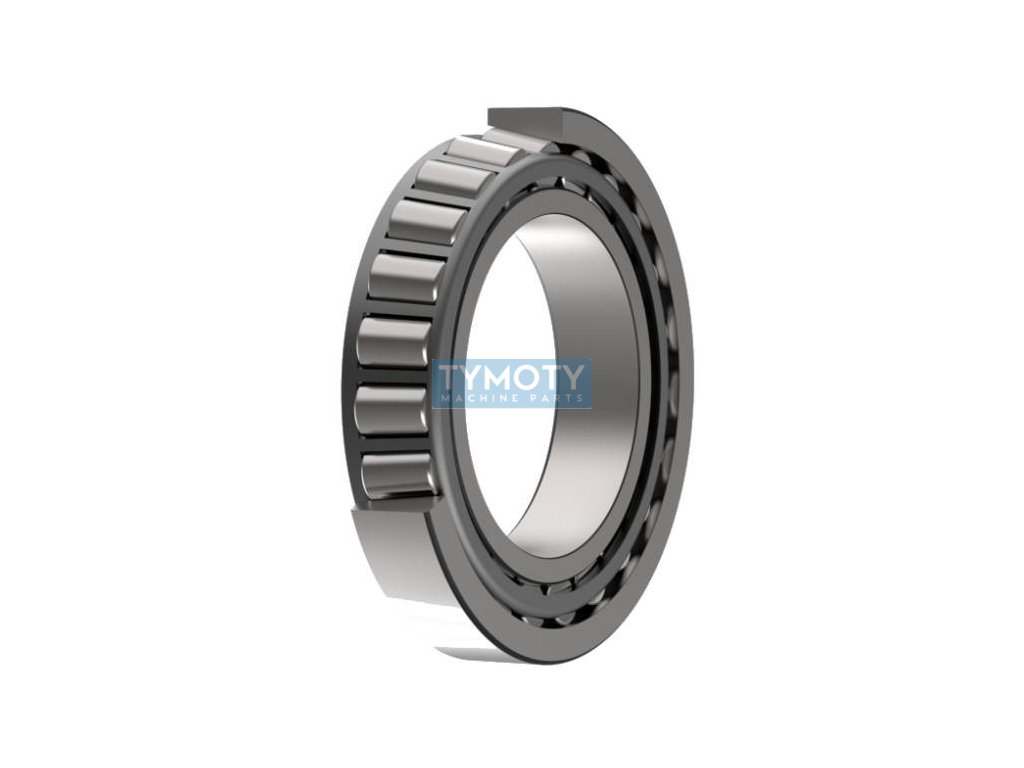

ZKL 580/572 tapered roller bearing

Product detailed description

The ZKL 580/572 tapered roller bearing is a precisely designed component intended for applications where combined loads, i.e. radial and axial forces, need to be transmitted. This bearing is manufactured by ZKL, a company known for its quality and reliability in the field of bearings.

The bearing has an inner diameter (d) of 82.55 mm and an outer diameter (D) of 139.992 mm, while the overall width (B) is 36.098 mm. The width of the tapered ring (C) is 28.575 mm and the overall width of the bearing (T) is 36.512 mm. These dimensions are optimized for effective force distribution and ensuring a long bearing life.

The material used for production is high-quality steel, which guarantees wear resistance and the ability to operate in a wide temperature range, from -30 °C to +120 °C. The bearing is equipped with a steel cage, which ensures the stability of the rolling elements and minimizes friction.

The ZKL 580/572 bearing is sealless, which means it is suitable for applications where external lubrication is provided. The hole profile is cylindrical, which allows easy mounting on the shaft. This type of bearing is ideal for use in industrial applications where high loads are present and high precision and reliability are required.
