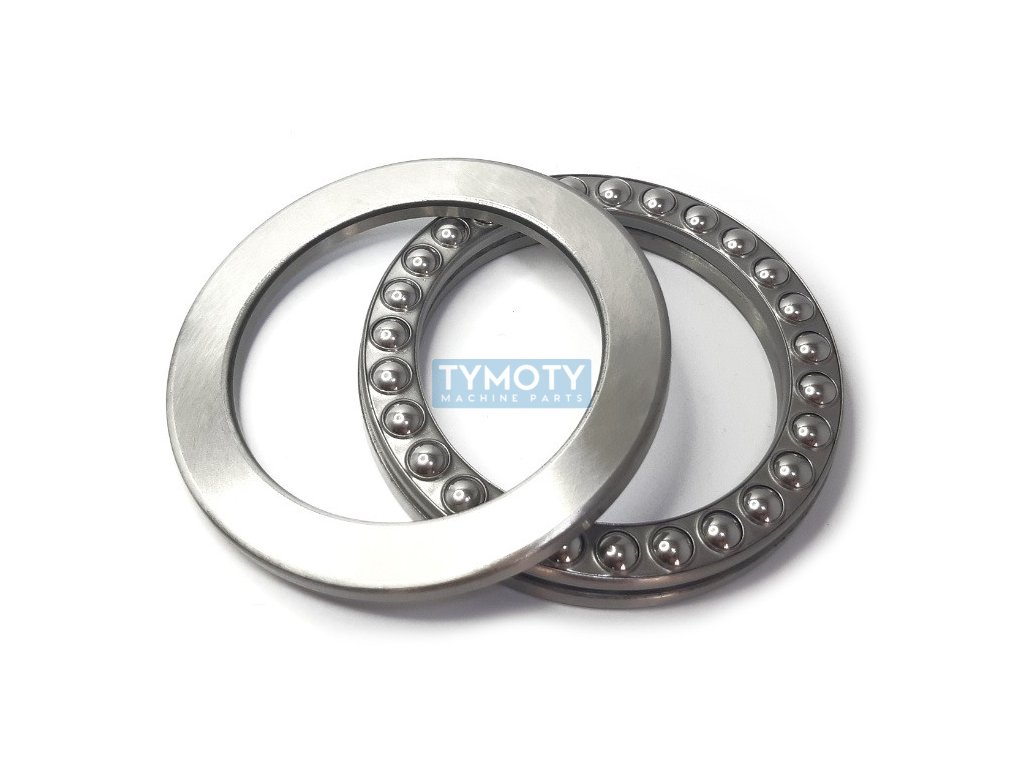

ZKL 51109 A axial ball bearing

Product detailed description

The ZKL 51109 A thrust ball bearing is designed to transmit axial loads in one direction. This bearing is characterized by its ability to transmit high axial forces while maintaining low friction, which is achieved thanks to the optimized design of the balls and raceways.

The bearing has an inner diameter (d) of 45 mm, an outer diameter (D) of 65 mm and a width (B) of 14 mm. These dimensions are standardized and allow easy integration into various applications where axial support is required. The hole profile is cylindrical, which simplifies assembly on the shaft.

The bearing design includes a steel cage, which ensures precise ball guidance and increases overall resistance to dynamic loads. The bearing is supplied without a seal, which means it is suitable for applications where protection against external contaminants is not required or where external lubrication is provided.

The manufacturer ZKL is known for its high quality and reliability, which guarantees a long service life and stable performance of the bearing in difficult operating conditions. The 51109 A bearing is ideal for use in industrial equipment where it is necessary to effectively transfer axial loads, such as gearboxes, pumps and other rotating machinery.
