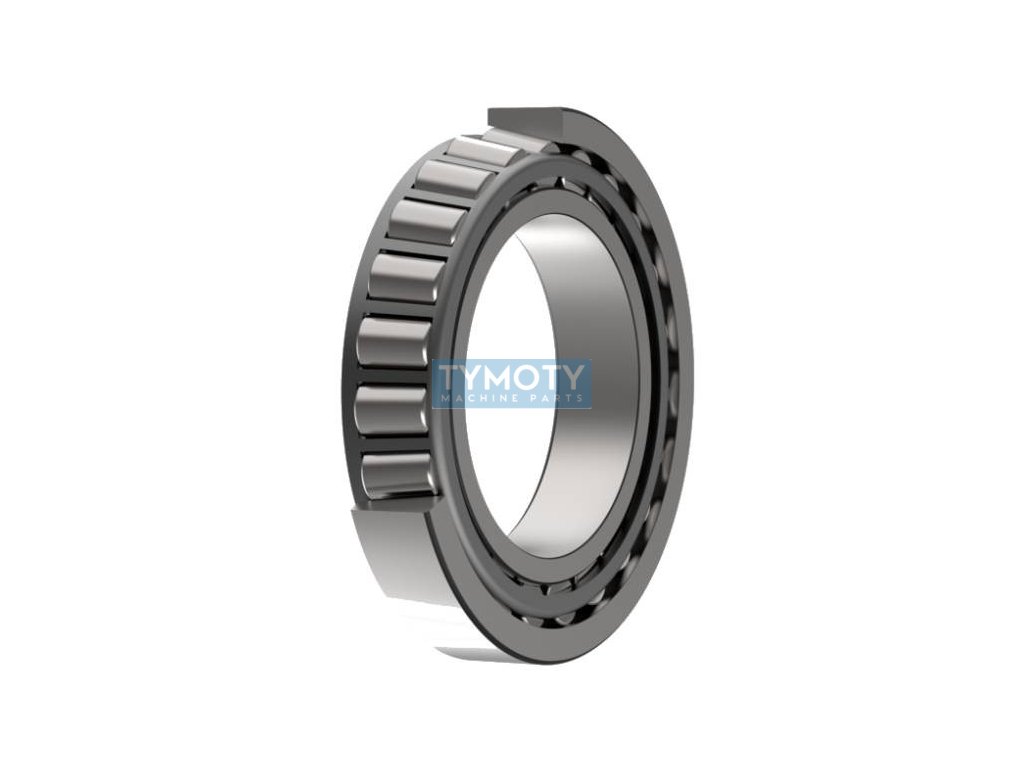

ZKL 32222 A tapered roller bearing

Product detailed description

Tapered roller bearing ZKL 32222 A is a high-precision component designed for applications where combined loads, i.e. axial and radial forces, need to be transmitted. This bearing is made of high-quality steel, which guarantees its long service life and reliability even in demanding operating conditions.

The bearing has an inner diameter (d) of 110 mm, an outer diameter (D) of 200 mm and an overall width (B) of 56 mm. The specific dimensions of the individual parts are the width of the rollers (C) of 46 mm and the overall width of the bearing (T) of 56 mm, which allows for precise seating and optimal load distribution. The hole profile is cylindrical, which is a standard solution for this type of bearing, allowing easy mounting on the shaft.

The bearing design is seal-free, which means that it is suitable for applications where protection against dust or moisture is not required, or where external lubrication is provided. The steel cage ensures the stability of the rollers and uniform distribution of forces during operation.

The bearing is capable of operating in a temperature range from -30 °C to +120 °C, which makes it suitable for use in various industrial sectors, including the automotive, mechanical engineering and energy industries. Thanks to its design features, it is ideal for applications where high demands are placed on precision and reliability.

The manufacturer of this bearing is the renowned ZKL company, known for its quality and innovation in the field of bearings. The product designation 32222 A allows for easy identification and matching with the technical specifications required in specific applications.
