ZKL 3204 NEW FORCE angular contact ball bearing
Code: 327150
Product detailed description

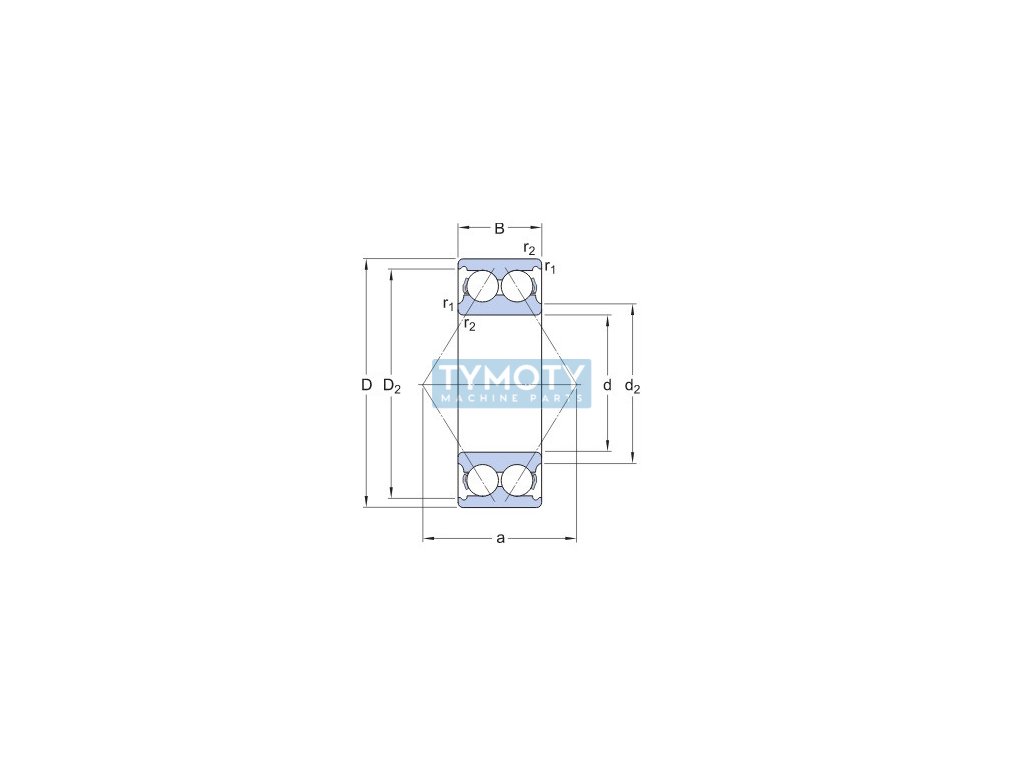

ZKL 3204 - non-separable double row angular contact ball bearing with filling hole on one side, pressed steel cage and normal axial clearance.The bearing has a contact angle of 32° and the rolling elements are arranged as a pair of contact in the \O\ configuration, i.e. back to back. The bearing can carry radial and bidirectional axial loads.
Additional parameters
| Category: | Bearings > ball bearing with diagonal contact > 32.. (52..) double row > 3204 (5204) > open |
|---|---|
| Weight: | 0.17 kg |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 20, 47 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | ZKL |
| Material: | steel |
| Seal: | without gaskets |
| Width B (mm): | 20,6 |
| Značení: | 3204 NEW FORCE |
| Typ: | kuličkové ložisko s kosoúhlým stykem |
