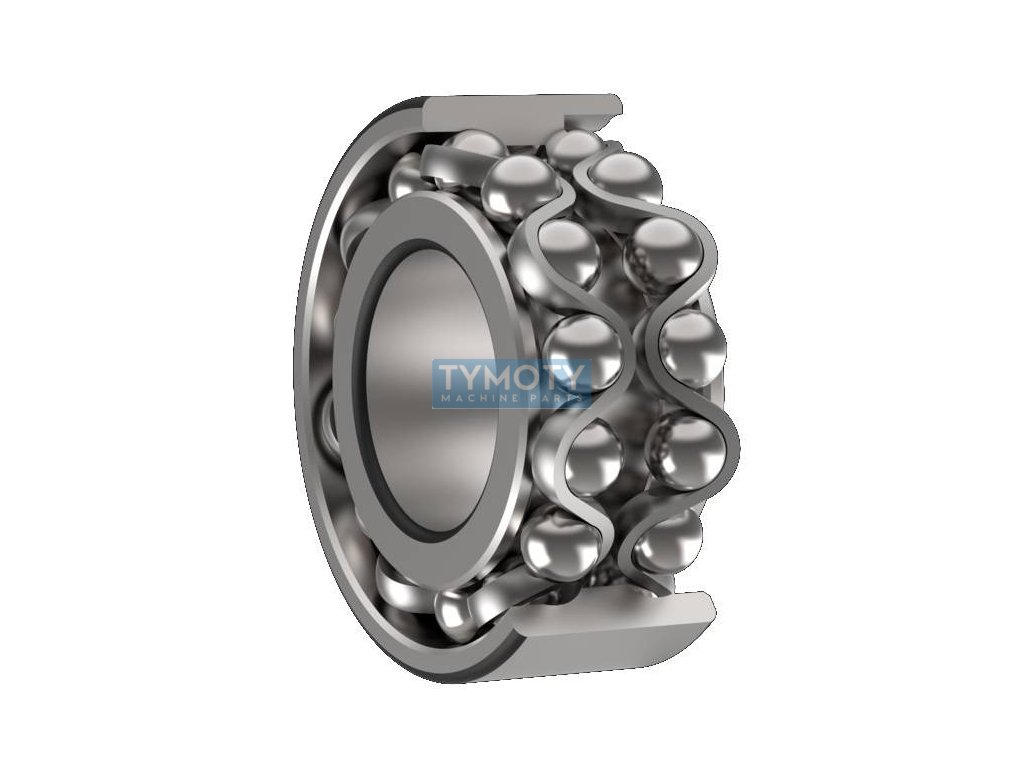

ZKL 3203 NEW FORCE angular contact ball bearing
Code: 327120
Product detailed description
ZKL 3203 - non-separable double row angular contact ball bearing with filling hole on one side, pressed steel cage and normal axial clearance.The bearing has a contact angle of 32° and the rolling elements are arranged as angular contact in the \O\ configuration, i.e. back to back. The bearing can carry radial and bidirectional axial loads.
Additional parameters
| Category: | Bearings > ball bearing with diagonal contact > 32.. (52..) double row > 3203 (5203) > open |
|---|---|
| Weight: | 0.1 kg |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 17, 40 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | ZKL |
| Material: | steel |
| Seal: | without gaskets |
| Width B (mm): | 17,5 |
| Značení: | 3203 NEW FORCE |
| Typ: | kuličkové ložisko s kosoúhlým stykem |
