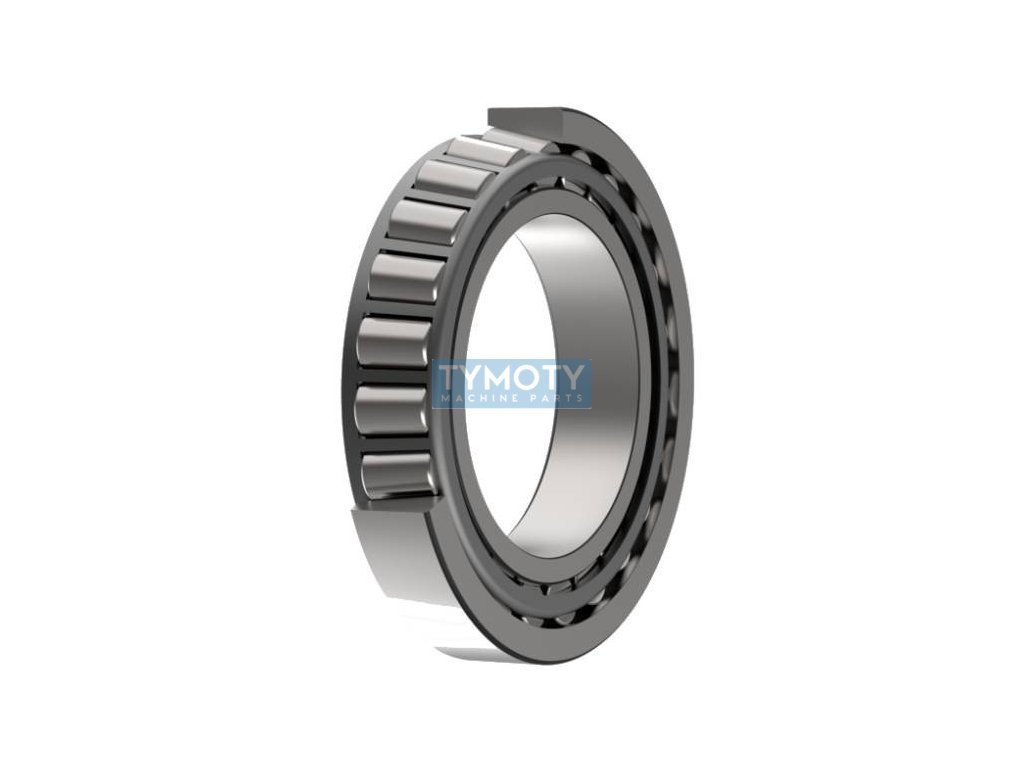

ZKL 30228 A tapered roller bearing

Product detailed description

Tapered roller bearing ZKL 30228 A is a high-quality component designed for applications requiring reliable transmission of combined radial and axial loads. This bearing is manufactured by the renowned manufacturer ZKL, which is known for its precise manufacturing and emphasis on quality. The bearing has an inner diameter (d) of 140 mm, an outer diameter (D) of 250 mm and a total width (T) of 45.75 mm, while the rolling element width (B) is 42 mm and the cage width (C) is 36 mm. These dimensions allow it to be used in a wide range of industrial applications.

The bearing is designed with a cylindrical profile hole, which makes it easier to mount on the shaft. The bearing material is high-quality steel, which guarantees long service life and wear resistance. The steel cage ensures stable guidance of the rolling elements and contributes to the overall robustness of the bearing. The bearing is designed to operate in a temperature range from -30 °C to +120 °C, which allows it to be used in various climatic conditions.

This bearing is not equipped with a seal, which means that it is suitable for applications where external lubrication is provided and where protection against dirt ingress is not required. Its design allows for the effective transmission of axial forces in one direction, which is typical of tapered roller bearings. Thanks to its technical parameters, the ZKL 30228 A is an ideal solution for use in heavy engineering applications such as gearboxes, differentials and other mechanisms where high load capacity and reliability are required.
