ZKL 23036 W33M cylindrical roller bearing
Code: 351083Product detailed description

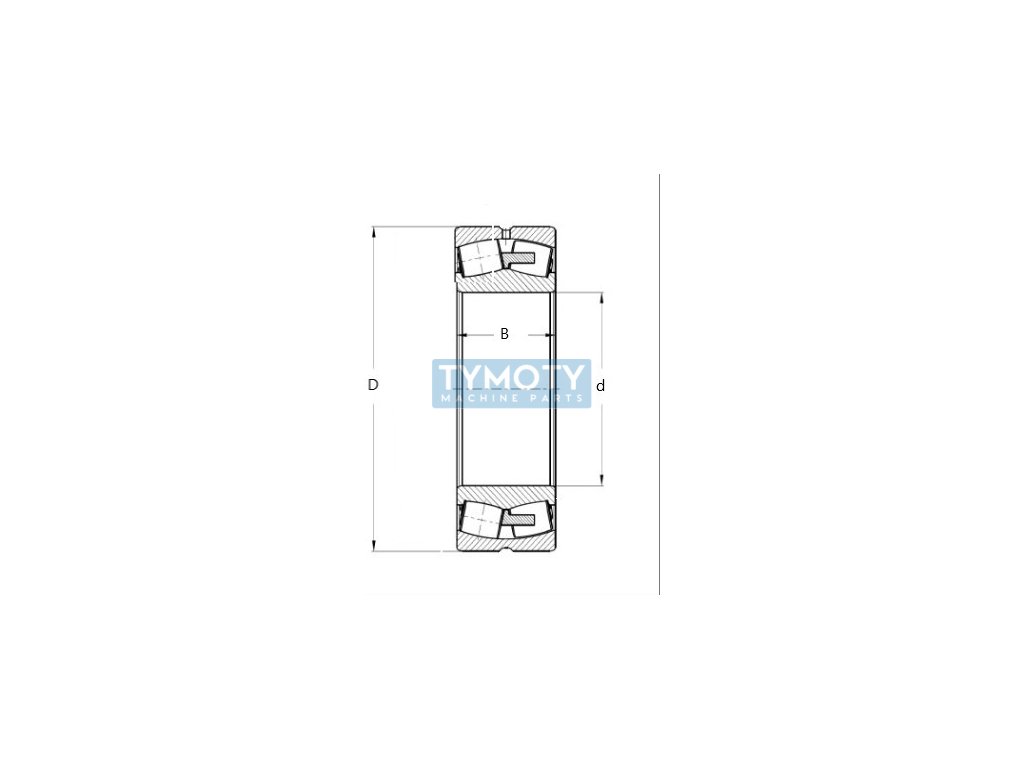

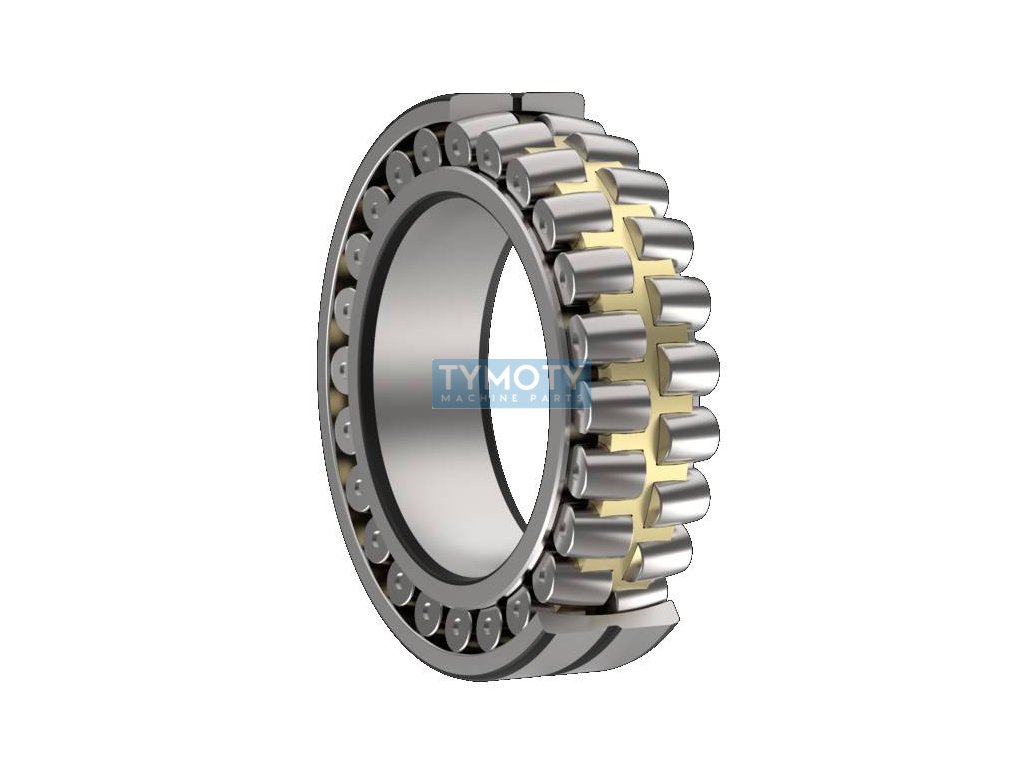

ZKL 23036 W33M is a spherical roller bearing designed for applications requiring high load capacity and the ability to handle shaft deflection. This bearing has an inner diameter (d) of 180 mm, an outer diameter (D) of 280 mm and a width (B) of 74 mm. Its design allows it to effectively transmit combined loads, which include both radial and axial forces, while being able to compensate for misalignment between the shaft and the bearing housing.The bearing is made of high-quality steel, which guarantees its long life and reliability in demanding operating conditions. The brass cage ensures proper guidance of the rolling elements and minimizes friction, thereby contributing to reducing operating temperatures and increasing the efficiency of the bearing.
ZKL 23036 W33M is seal-free, which means it is suitable for applications where external lubrication is provided. The normal clearance of the bearing allows it to be used in a wide range of applications where temperature fluctuations or slight shaft misalignment are present. The cylindrical hole profile facilitates mounting on the shaft and ensures a firm fit.
This bearing is ideal for use in heavy industrial applications, such as drives in mining, metallurgy or the energy sector, where high reliability and resistance to dynamic loads are required. The manufacturer ZKL is known for its precision manufacturing and long-standing tradition in the field of bearings, which guarantees the quality and performance of this component.
Additional parameters
Category: | Bearings > soudeková > cylindrical hole > 230xx > 23036 |
---|---|
Weight: | 18 kg |
Cage: | brass |
Clearance: | normal |
Diameter D (mm): | 180, 280 |
Hole profile: | cylindrical |
Manufacturer's brand: | ZKL |
Material: | steel |
Seal: | without gaskets |
Width B (mm): | 74 |
Značení: | 23036 W33M |
Typ: | soudečkové ložisko |
