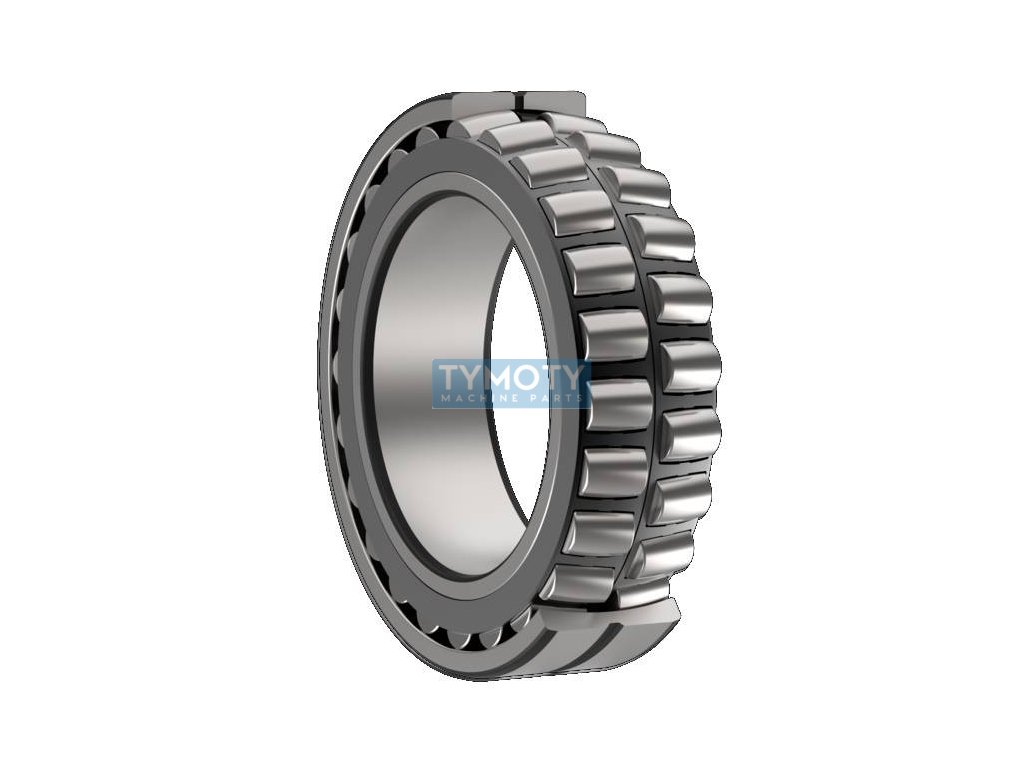

ZKL 23026 CW33J C3 cylindrical roller bearing

Product detailed description

ZKL 23026 CW33J C3 spherical roller bearing is a high quality component designed for applications where it is necessary to handle high radial loads together with axial loads in both directions. This bearing is designed with robustness and reliability in mind, which makes it suitable for use in demanding industrial conditions.

The bearing has an outer diameter (D) of 200 mm, an inner diameter (d) of 130 mm and a width (B) of 52 mm. These dimensions make it suitable for a wide range of applications where high load capacity and resistance to dynamic loads are required. Spherical roller bearings are known for their ability to compensate for misalignment of the shaft relative to the bearing housing, which is achieved thanks to their design with two rows of rolling elements.

The hole profile is cylindrical, which allows for easy mounting on the shaft. The bearing is equipped with a steel cage, which ensures optimal guidance of the rolling elements and contributes to the overall durability and service life of the bearing. ZKL 23026 CW33J C3 is without seals, which means that it is suitable for applications where protection against external contaminants is not required or where external lubrication is provided.

The bearing clearance is marked as C3, which means that it has a larger internal clearance than standard bearings. This feature is important for applications with higher temperature differences or where increased thermal expansion of materials is expected.

The manufacturer ZKL is known for its precise production and high quality products, which guarantees reliability and long service life of the bearing in operation. This bearing model is ideal for use in heavy industrial applications, such as drives in the mining industry, metallurgy or energy, where high resistance to loads and vibrations is required.
