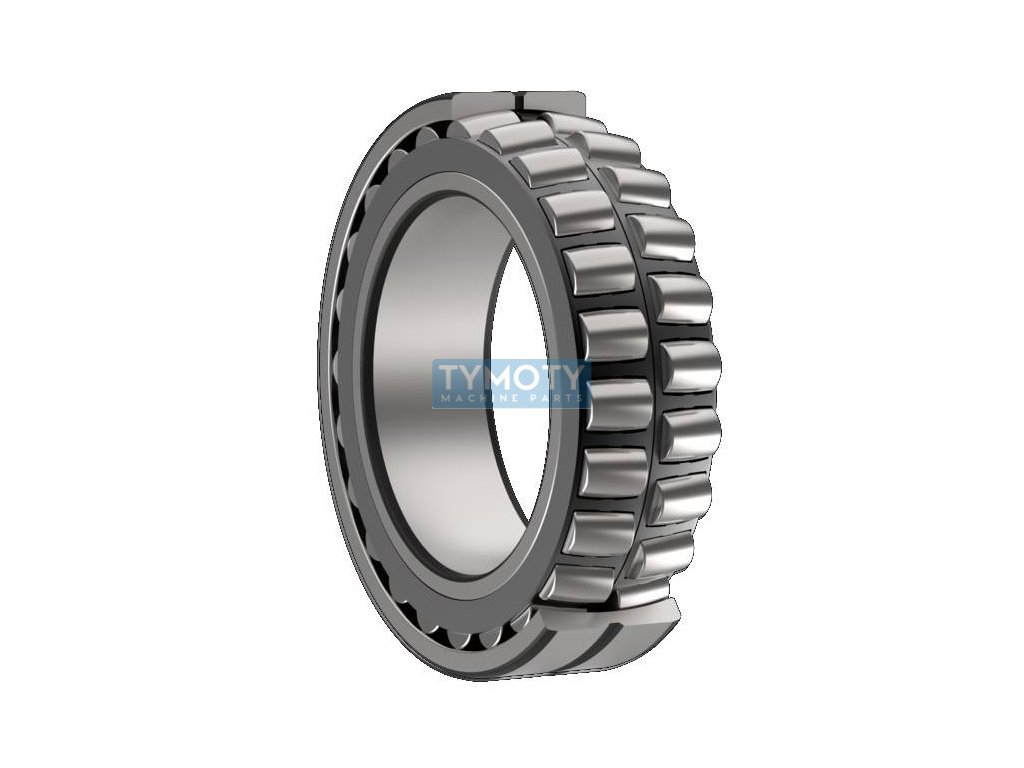

ZKL 22308 EKW33J C3 cylindrical roller bearing

Product detailed description

ZKL 22308 EKW33J C3 spherical roller bearing is a precisely designed component intended for applications where combined loads, i.e. radial and axial forces, need to be handled. This bearing is part of the production of the renowned manufacturer ZKL, which is known for its quality and reliability in the field of bearings.

This bearing has an inner diameter (d) of 40 mm, an outer diameter (D) of 90 mm and a width (B) of 33 mm. Its design is based on the spherical roller type, which means that it is able to compensate for misalignment of the shaft relative to the bearing housing, which is often caused by bending or incorrect adjustment.

The bearing is equipped with a tapered bore, which allows mounting on tapered shafts or using a clamping sleeve. The bearing material is high-quality steel, which guarantees long service life and wear resistance. The steel cage ensures a firm seating of the rolling elements and contributes to the overall robustness of the bearing.

The 22308 EKW33J C3 model is supplied without a seal, which means it is suitable for applications where external lubrication and protection against dirt are provided. The bearing clearance is marked C3, which indicates an increased internal clearance, which is suitable for applications with higher operating temperatures or where thermal expansion needs to be compensated.

This bearing is ideal for use in industrial applications where high load capacity and the ability to handle dynamic loads are required, such as drives, gearboxes, or other mechanisms exposed to high loads and vibrations.
