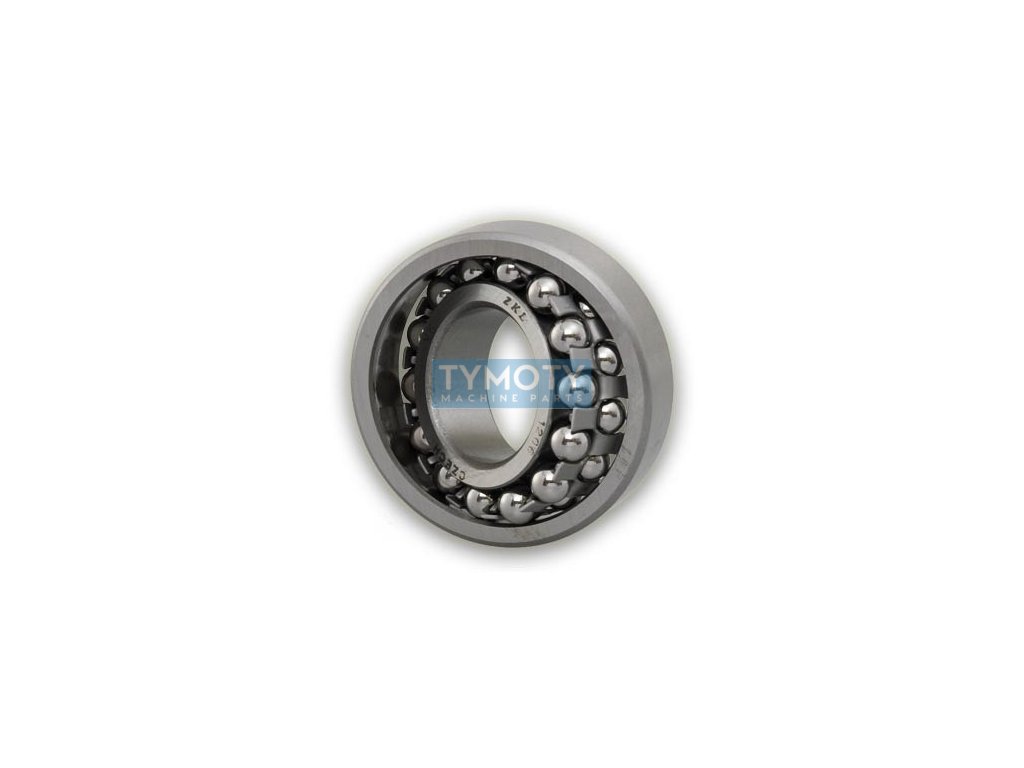

ZKL 2218 tilting ball bearing

Product detailed description

ZKL 2218 is a non-separable double row self-aligning ball bearing designed for applications requiring the ability to compensate for misalignment and deflection of the shaft relative to the housing. This bearing is equipped with a pressed steel cage, which is guided by two rows of balls. Thanks to the common ball raceway in the outer ring, the bearing allows tilting, thereby effectively compensating for misalignment in the axis.

The bearing has an outer diameter of 160 mm, an inner diameter of 90 mm and a width of 40 mm. It is made of high-quality steel, which guarantees its high resistance and long service life in demanding operating conditions. The hole profile is cylindrical, which allows easy mounting on the shaft. The bearing is supplied without a seal, which is suitable for applications where it is not necessary to protect the bearing from external dirt or moisture.

Normal radial clearance ensures optimal operation under normal load and temperature conditions. Thanks to its design features, the ZKL 2218 bearing is ideal for use in various industrial sectors where it is necessary to ensure reliable operation even with slight deviations in component alignment.
