ZKL 2208 K tilting ball bearing

Code: 323080
Not rated
9,26 € –8 %

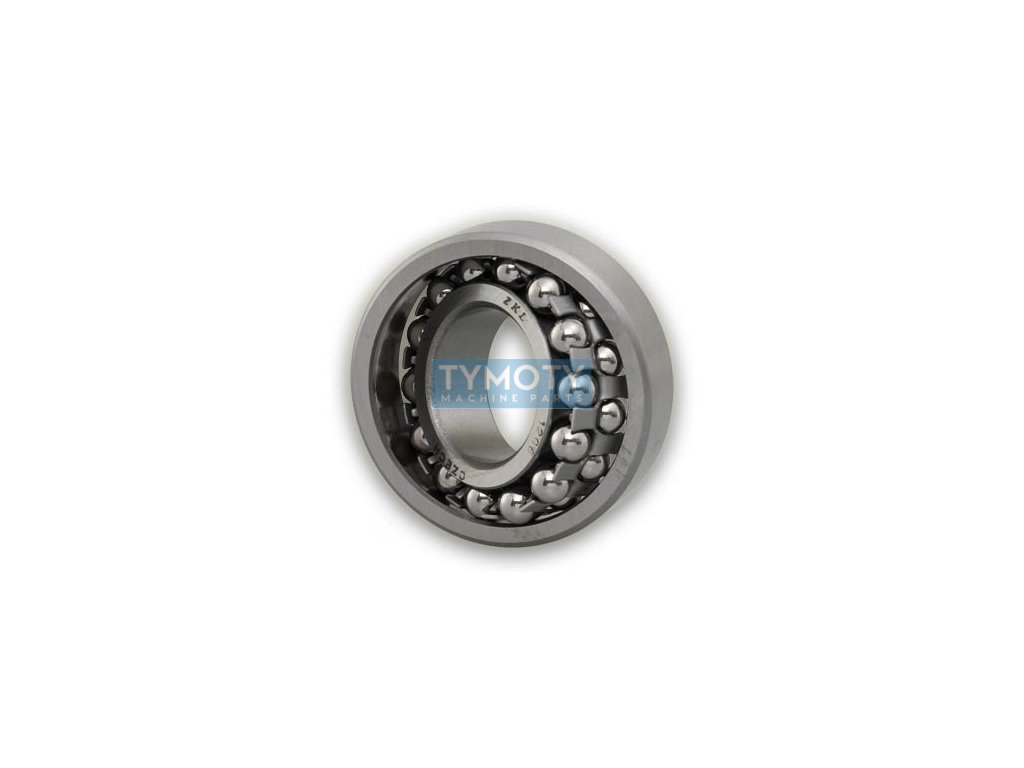

ZKL 2208 K tilting ball bearing
9,26 € –8 % 8,47 € / pcs 10,25 € incl. VAT
In stock (14 pcs)
Delivery to:
05/08/2025
Delivery offer

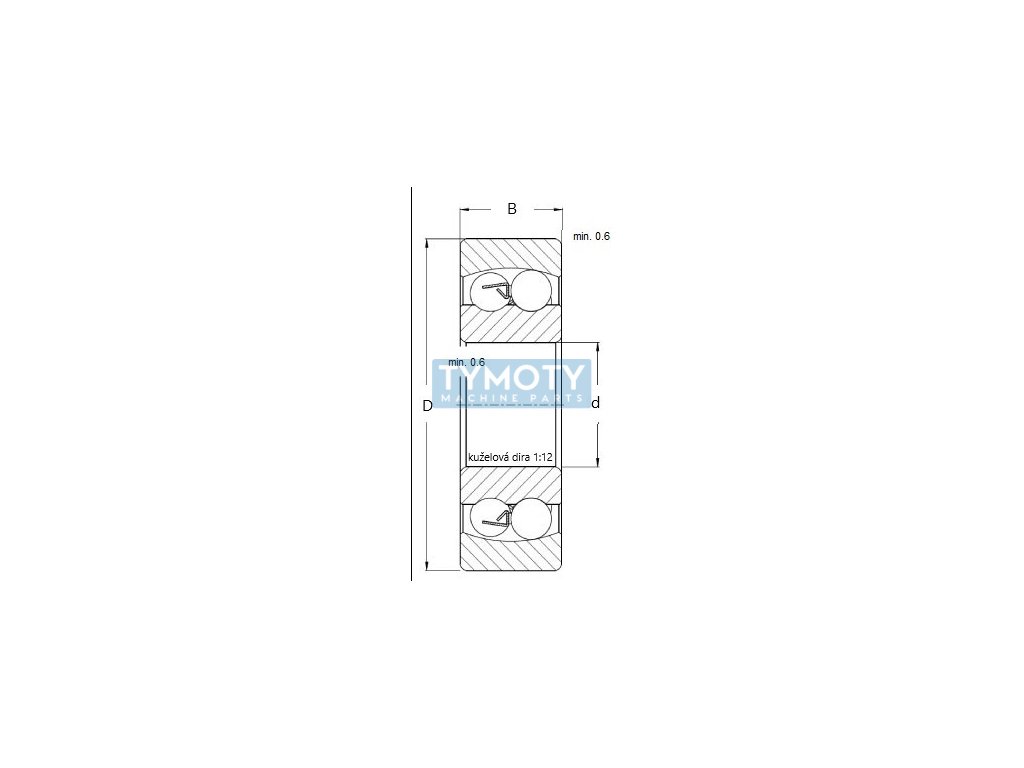

CZ production / d=40 mm, D=80 mm, B=23 mm - self-aligning ball bearing 2208 K - manufacturer ZKL

Detailed information

Delivery throughout the EU

Product detailed description

ZKL 2208 K - non-separable double-row self-aligning ball bearing with a tapered bore, a pressed steel cage guided by two rows of balls and with normal radial clearance.
The outer ring has a common spherical raceway for both rows to or deflection of the shaft relative to the housing.
The bearing is mounted on a cylindrical shaft using an H 308 adapter sleeve.

Additional parameters

Category: Bearings > tilting ball > 22..K taper hole > 2208K
Weight: 0.51 kg
Cage: steel
Clearance: normal
Diameter D (mm): 80, 40
Hole profile: conical
Manufacturer's brand: ZKL
Material: steel
Seal: without gaskets
Width B (mm): 23
Značení: 2208 K
Typ: naklápěcí kuličkové ložisko
