ZKL 2200 tilting ball bearing

Product detailed description

The ZKL 2200 is a non-separable double row self-aligning ball bearing designed for applications requiring the ability to compensate for misalignment or deflection of the shaft relative to the housing. This bearing is characterized by its design with a pressed steel cage, which is guided by two rows of balls. This configuration allows the bearing to maintain optimal functionality even with slight deviations in alignment.

The outer ring of the bearing has a common spherical raceway for both rows of balls, which ensures the ability to tilt the bearing. This feature is crucial for applications where misalignment may occur due to mounting inaccuracies or dynamic changes during operation.

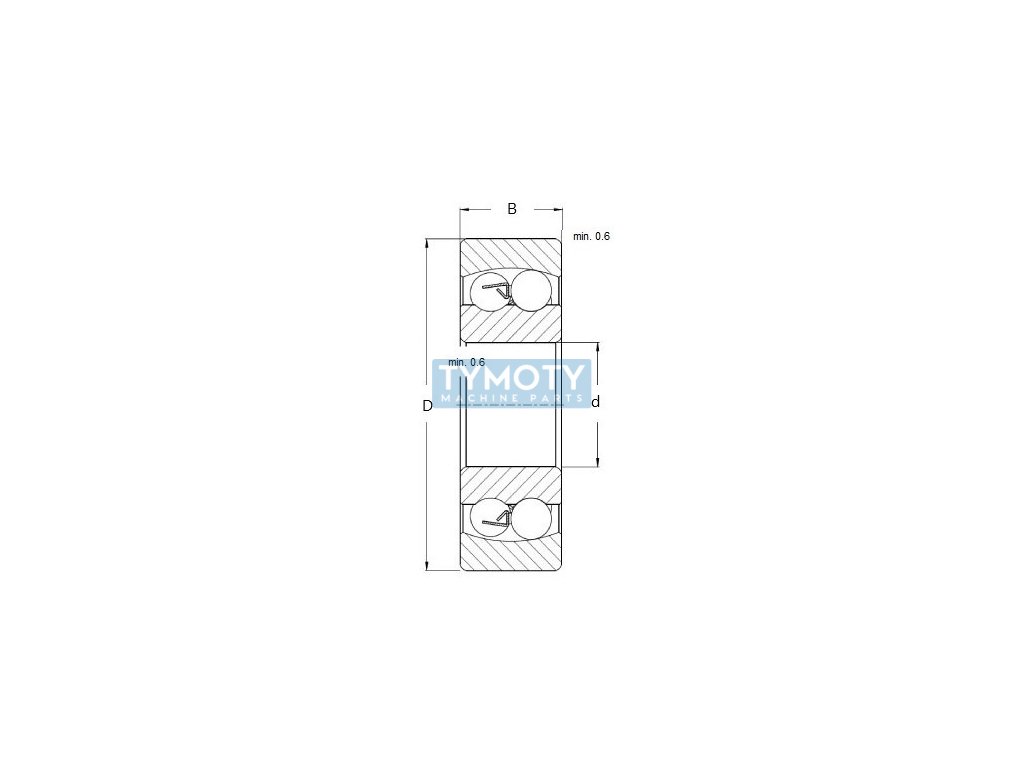

The dimensions of the bearing are as follows: the inner diameter (d) is 10 mm, the outer diameter (D) is 30 mm and the width (B) is 14 mm. The bearing is made of steel, which guarantees its high strength and wear resistance. The hole profile is cylindrical, which is a standard shape for easy mounting on the shaft.

The ZKL 2200 bearing is supplied without a seal, which means that it is intended for applications where protection against external contaminants is not required or where sufficient lubrication is ensured in another way. The normal radial clearance of the bearing allows it to be used in a wide range of applications where reliable and flexible support of rotating parts is required.

The ZKL manufacturer is known for its precise production and high quality of bearings, which guarantees a long service life and reliable operation of this component in various industrial sectors.
