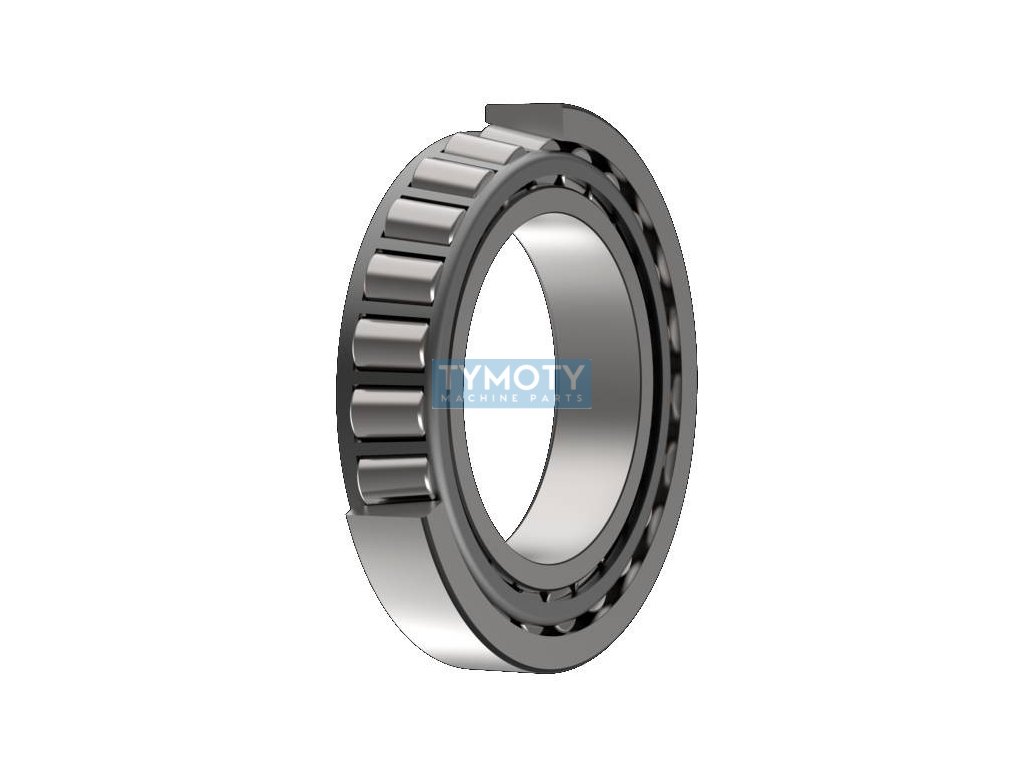

ZKL 15123/15250X tapered roller bearing

Product detailed description

The ZKL 15123/15250X tapered roller bearing is a precisely designed component intended for applications where it is necessary to transfer combined loads, i.e. radial and axial forces. This bearing is made of high-quality steel, which ensures its high resistance and long service life even in demanding operating conditions.

The dimensions of the bearing are precisely specified: the inner diameter (d) is 31.75 mm, the outer diameter (D) is 63.5 mm and the overall width (B) is 20.638 mm. The width of the tapered ring (C) is 15.875 mm, which is an important parameter for the correct assembly and function of the bearing. The overall width (T) is the same as the width B, i.e. 20.638 mm, which indicates that the bearing is designed for precise seating in the bearing housing.

The bearing is equipped with a steel cage, which ensures proper roller guidance and minimizes friction, thereby contributing to efficient power transmission and increasing overall reliability. The bearing is not equipped with a seal, which means that it is suitable for applications where external lubrication and protection against contamination are provided.

The operating temperature range of the bearing is from -30 °C to +120 °C, which allows its use in a wide range of industrial applications, including those requiring resistance to extreme temperatures. The hole profile is cylindrical, which is a standard shape for easy shaft mounting.

ZKL is a renowned bearing manufacturer, known for its quality and reliability, which ensures that the 15123/15250X bearing will meet the high performance and durability requirements in various industrial sectors.
