ZKL 1305 K tilting ball bearing
Code: 322630
Product detailed description

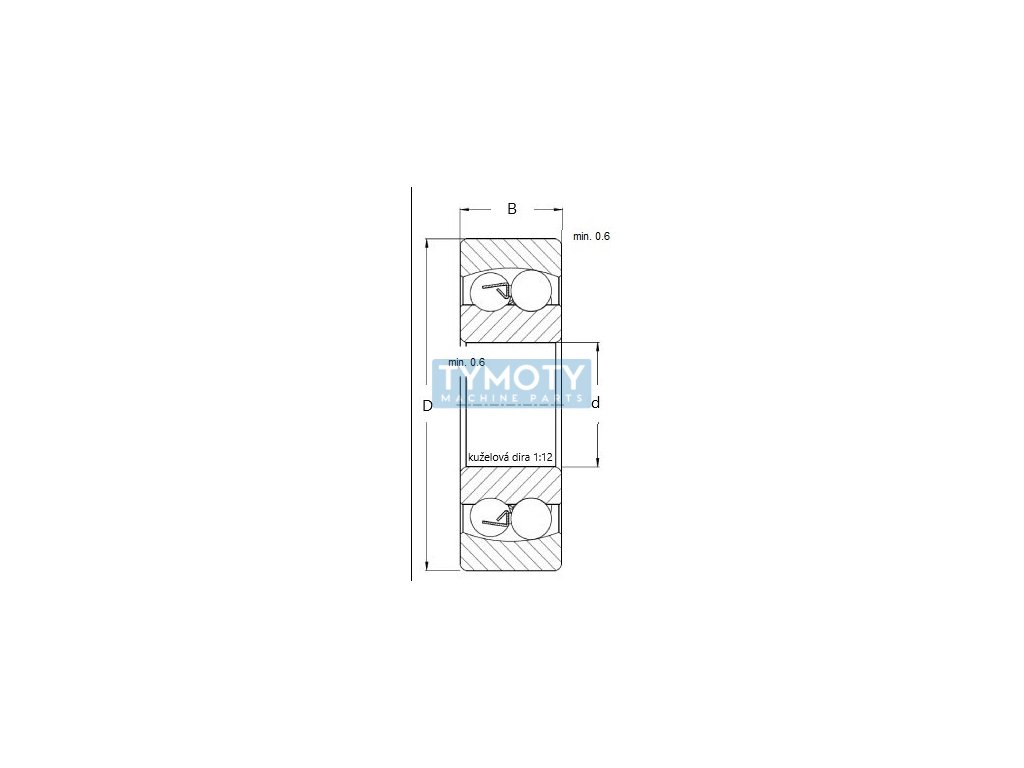

ZKL 1305 K - non-separable double-row self-aligning ball bearing with a tapered bore, a pressed steel cage guided by two rows of balls and with normal radial clearance.The outer ring has a common spherical raceway for both rows to or deflection of the shaft relative to the housing.
The bearing is mounted on a cylindrical shaft using an H 305 adapter sleeve.
Additional parameters
| Category: | Bearings > tilting ball > 13.. > 1305 |
|---|---|
| Weight: | 0.252 kg |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 25, 62 |
| Hole profile: | conical |
| Manufacturer's brand: | ZKL |
| Material: | steel |
| Seal: | without gaskets |
| Width B (mm): | 17 |
| Značení: | 1305 K |
| Typ: | naklápěcí kuličkové ložisko |
