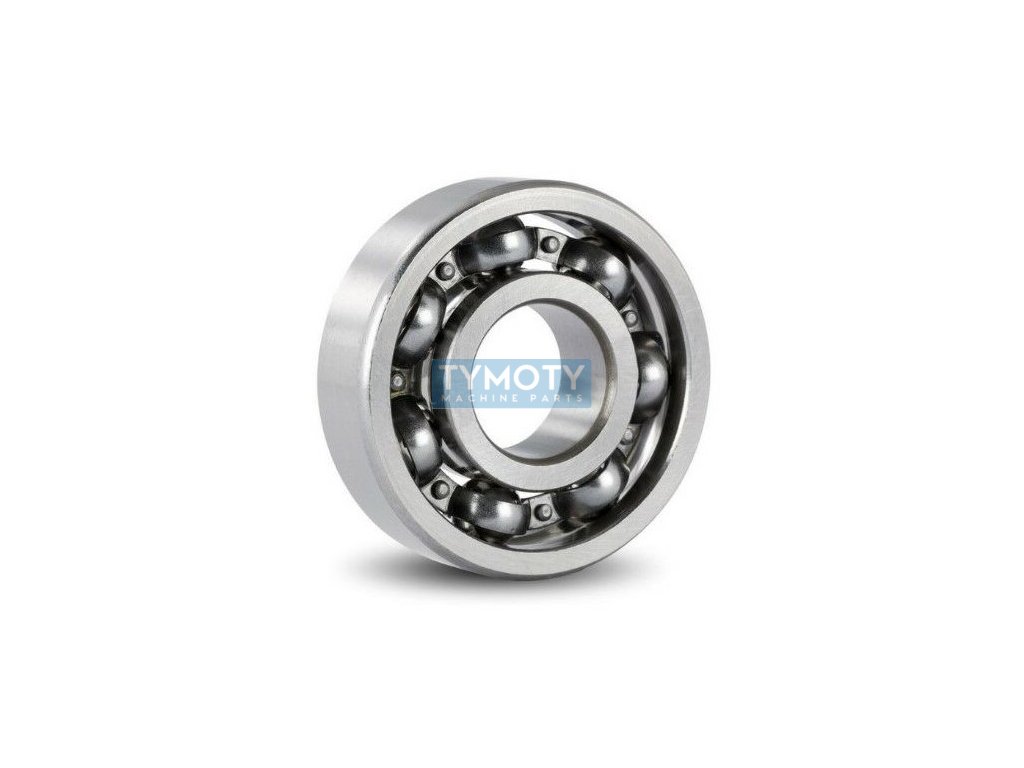

ZEN SMR 128 stainless steel ball bearing
Code: 633235Product detailed description
ZEN SMR 128 is a stainless steel ball bearing designed for a wide range of applications where high corrosion resistance and precision are required. This bearing belongs to the category of deep groove ball bearings, which are known for their ability to carry radial and axial loads in both directions.The bearing has an inner diameter (d) of 8 mm, an outer diameter (D) of 12 mm and a width (B) of 2.5 mm. It is made of stainless steel, which guarantees its corrosion resistance and long service life even in demanding conditions. The material of the rolling elements and cage is also stainless steel, while the cage is pressed, which contributes to the overall robustness and reliability of the bearing.
The SMR128 bearing is unsealed, meaning it is an uncovered bearing, which allows it to be used in applications where protection against dust or moisture is not required. The internal clearance is normal, which is suitable for most standard applications. The running accuracy is in the P0/PN class, or ABEC 1, which is the basic level of accuracy for common industrial applications.
The operating temperature range of the bearing is from -20 °C to +120 °C, and it can withstand temperatures up to +150 °C for a short time. The bearing does not have insulation against the passage of electric current, which is important to consider when using it in electrical equipment.
The shape of the outer ring is without a flange or groove and the hole profile is cylindrical, which allows for easy assembly and disassembly. The weight of the bearing is 0.001 kg, which makes it suitable for applications where low component weight is important. The manufacturer's brand ZEN is known for its quality and reliability in the field of bearing production.
Additional parameters
Category: | Bearings > ball > miniature d=0.6 to 9mm > d = 8 mm > MR128 (D=12 W=2.5) |
---|---|
Weight: | 0.001 kg |
Cage: | stainless steel |
Clearance: | normal |
Diameter D (mm): | 12, 8 |
Hole profile: | cylindrical |
Manufacturer's brand: | ZEN |
Material: | stainless steel |
Maximum temperature °C: | +120 |
Minimum temperature °C: | -20 |
Seal: | without gaskets |
The shape of the outer ring: | without flange / groove |
Width B (mm): | 2,5 |
Značení: | SMR128 |
Typ: | kuličkové ložisko |
