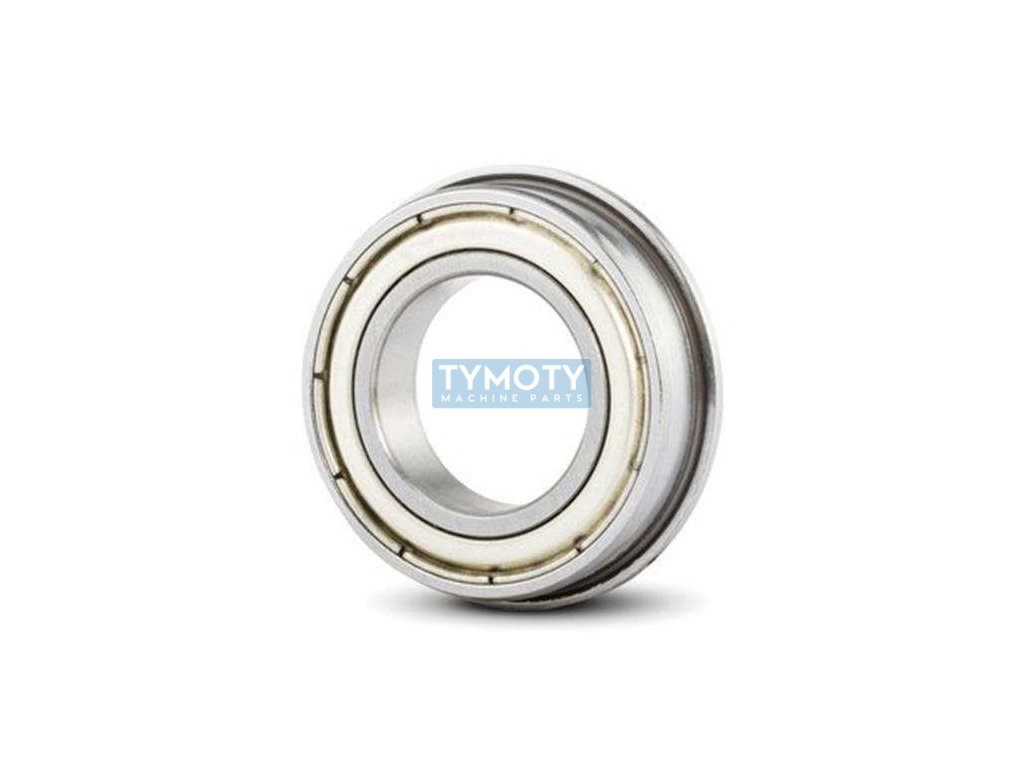

ZEN SF 604 2Z stainless steel ball bearing with flange

Product detailed description

ZEN SF 604 2Z is a stainless steel flanged ball bearing designed for applications requiring high precision and corrosion resistance. This bearing is a deep groove ball bearing, which means it is capable of carrying both axial and radial loads.

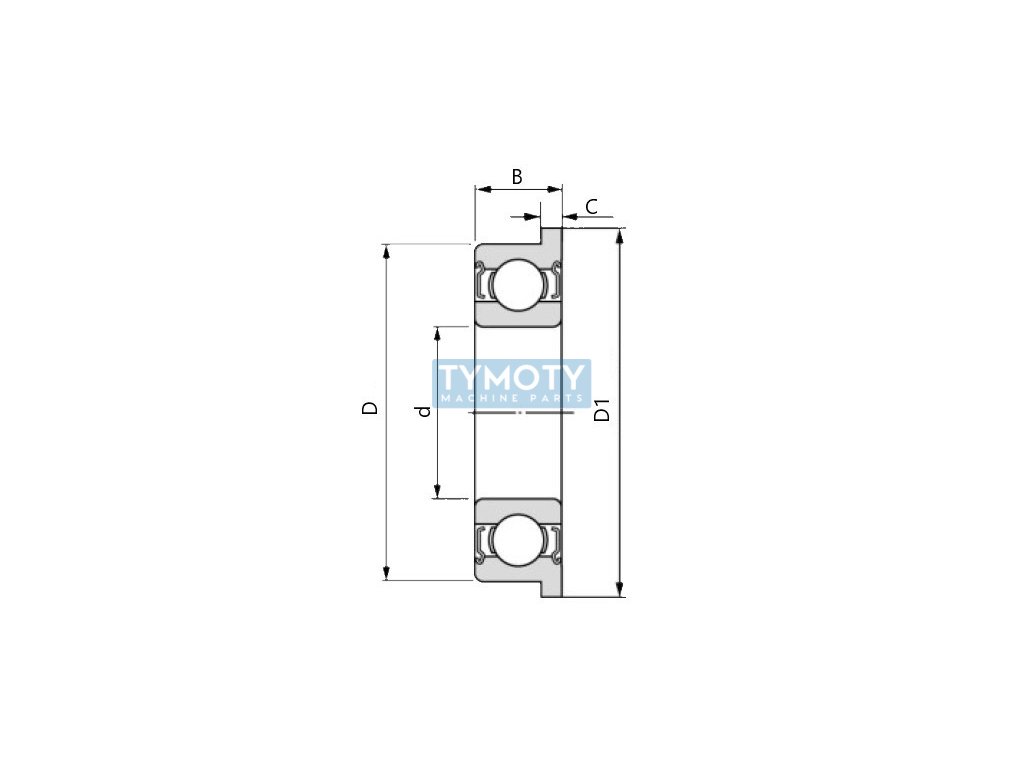

The bearing has an inner diameter (d) of 4 mm, an outer diameter (D) of 12 mm and a width (B) of 4 mm. The outer ring is equipped with a flange with a diameter of D1 of 13.5 mm, which facilitates mounting and increases stability in high-speed applications. The hole profile is cylindrical, which is a standard solution for easy installation on the shaft.

The bearing material is stainless steel, which provides excellent corrosion resistance and is suitable for use in environments with high humidity or chemicals. The bearing is equipped with a double-sided sheet metal cover, which protects against dirt ingress and extends the life of the bearing.

The bearing cage is made of pressed steel, which ensures strength and durability at high speeds. The bearing has normal radial clearance and falls into the P0/PN accuracy class, which corresponds to ABEC 1, the basic accuracy level for common applications.

The operating temperature range of the bearing is from -20 °C to +120 °C, and it can withstand temperatures from -30 °C to +150 °C for short periods. The bearing is not insulated against the passage of electric current, which is important to consider in applications where electrical penetration may occur.

Weighting only 0.003 kg, this bearing is ideal for lightweight structures where weight minimization is required. Thanks to its properties, ZEN SF 604 2Z is suitable for a wide range of industrial applications, including the food industry, pharmaceutical equipment and other areas where high corrosion resistance and precision are required.
