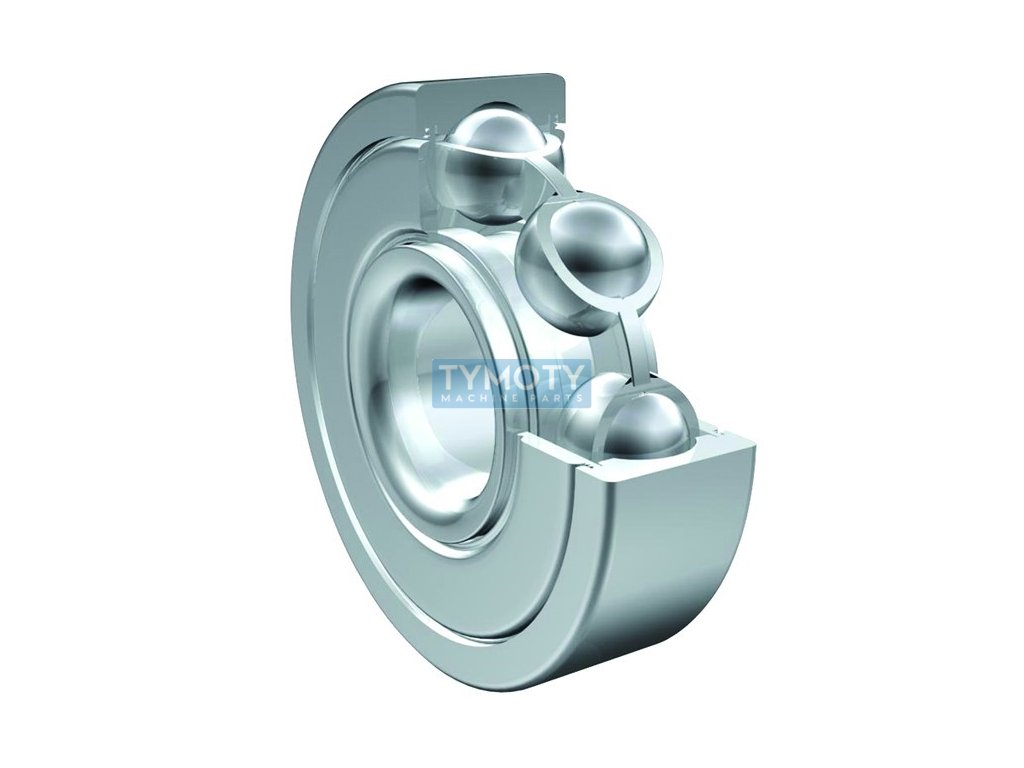

ZEN S 696A-2Z (W 619/6A-2Z) stainless steel ball bearing

Product detailed description

ZEN S 696A-2Z is a stainless steel ball bearing that is part of the deep groove ball bearing series. This component is designed with an emphasis on precision and durability, making it ideal for applications requiring reliability in demanding conditions. The bearing has an inner diameter of 6 mm, an outer diameter of 16 mm and a width of 5 mm, which makes it ideal for use in compact mechanisms where space is limited.

The material composition of the bearing is stainless steel, which guarantees high corrosion resistance and long service life even in environments with high humidity or chemical aggression. The rolling elements, cage and both rings are made of the same material, which contributes to the overall robustness and reliability of the bearing. The cage is pressed from steel, which ensures a firm hold of the balls and uniform load distribution.

The bearing is equipped with a double-sided sheet metal seal, which provides protection against dust and dirt, thus extending its service life and reducing the need for maintenance. The seal also allows operation in a temperature range from -30 °C to +150 °C, which increases its flexibility in various industrial applications.

The running accuracy of the bearing is in class P0/PN, which corresponds to ABEC 1 standards, and provides sufficient accuracy for most common applications. The bearing has normal radial clearance, which is suitable for applications where special adjustments to the clearance parameters are not required.

The total weight of the bearing is 0.004 kg, which contributes to its easy handling and installation. The bearing does not contain any insulation against electric current, which is important to consider when integrating it into electrical equipment. Thanks to its properties, the ZEN S 696A-2Z is suitable for a wide range of applications, including mechanical engineering, the automotive industry and other areas where compact and durable bearing solutions are required.
