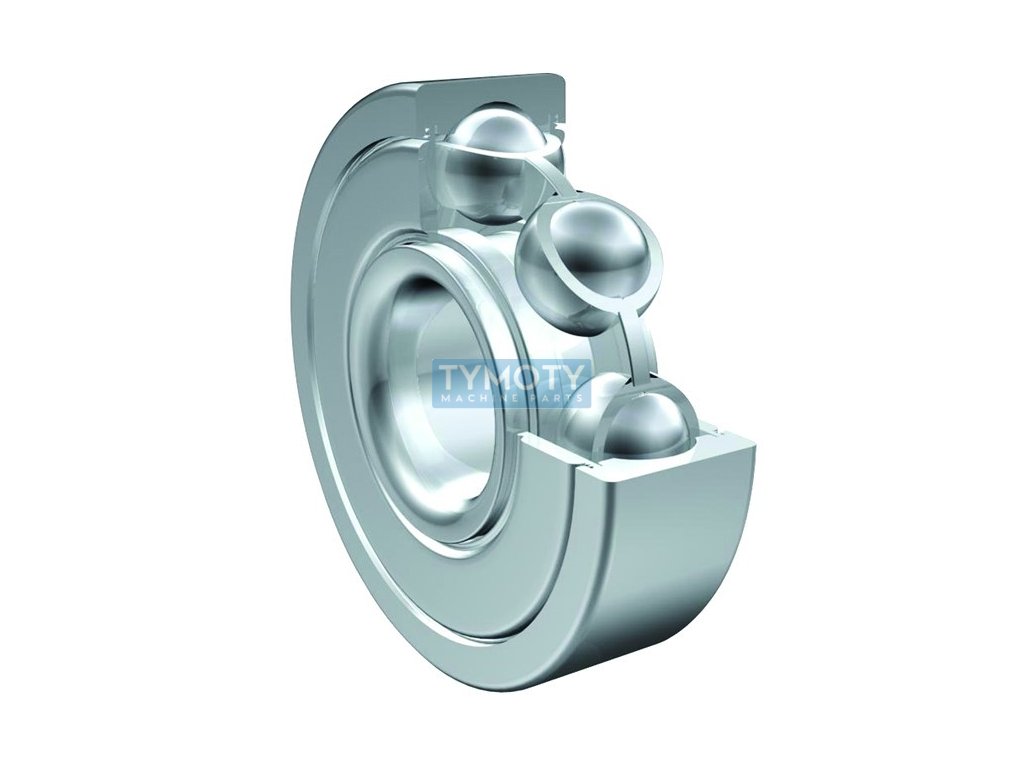

ZEN S 61806-2Z stainless steel ball bearing

Product detailed description

The ZEN S 61806-2Z stainless steel ball bearing is designed for applications requiring high corrosion resistance and reliable performance over a wide temperature range. The bearing has an inner diameter of 30 mm, an outer diameter of 42 mm and a width of 7 mm, making it suitable for compact designs where space is limited.

It is made of stainless steel, which ensures high corrosion resistance and long service life even in harsh conditions. The rolling elements and cage are also made of stainless steel, while the cage is pressed, which contributes to the overall strength and stability of the bearing.

The bearing is equipped with a double-sided sheet metal cover that provides protection against dirt and contamination, thereby increasing its reliability and reducing the need for maintenance. The outer ring shape is without a flange or groove, and the bore profile is cylindrical, which allows easy mounting in various designs.

The operating temperature range of the bearing is from -30 °C to +150 °C, while the optimal temperature range for long-term operation is from -20 °C to +120 °C. The bearing has normal radial clearance and meets the accuracy class P0/PN, which corresponds to ABEC 1, ensuring sufficient accuracy for common applications.

The weight of the bearing is 0.027 kg, which contributes to its low weight and suitability for applications where weight minimization is important. The bearing is not insulated against the passage of electrical current and is single-row, which is typical for ball bearings designed to carry radial and axial loads in both directions.

The manufacturer ZEN is known for its quality and reliability, which makes the S 61806-2Z bearing a suitable choice for a wide range of industrial applications.
