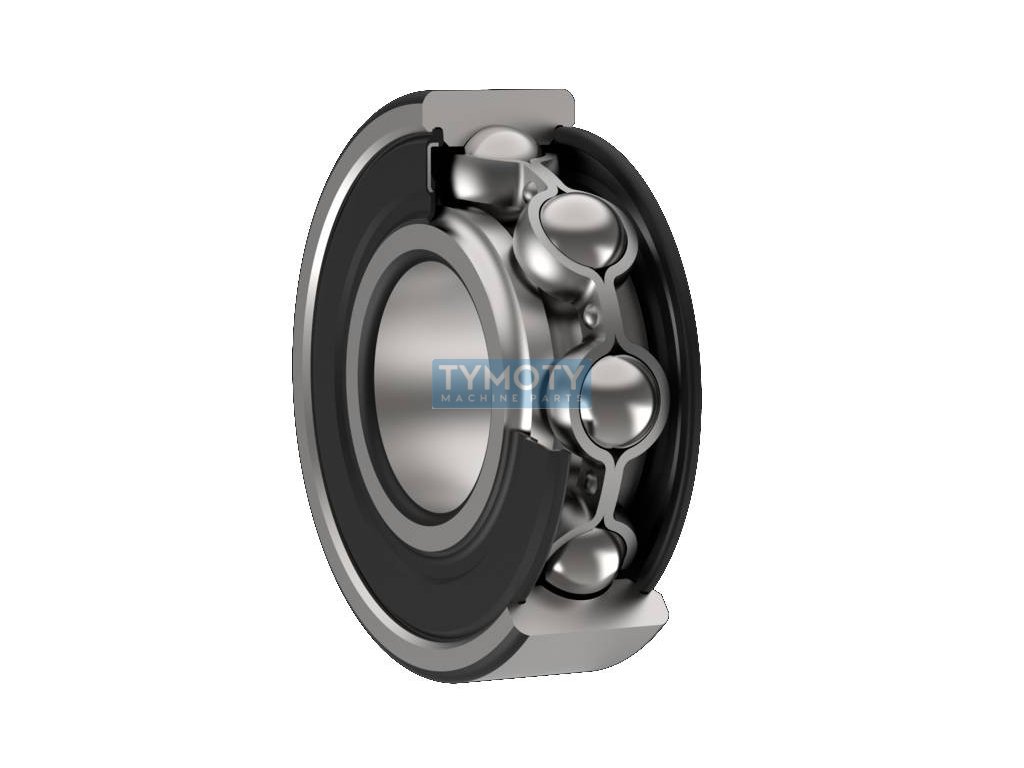

ZEN MR 85-2RS deep groove ball bearing

Product detailed description

The ZEN MR 85-2RS ball bearing is a precision-engineered component designed for applications requiring small dimensions and high reliability. This bearing has an inner diameter of 5 mm, an outer diameter of 8 mm and a width of 2.5 mm, which makes it ideal for use in compact mechanical assemblies.

The bearing belongs to the category of deep groove ball bearings, which are known for their ability to carry both radial and axial loads. It is characterized by a single-row arrangement of balls, which ensures optimal load dispersion and smooth operation.

The material composition of the bearing includes stainless steel, which provides high corrosion resistance and extends the life of the component even in harsh conditions. The rolling elements are also made of stainless steel, which increases the overall durability and reliability of the bearing.

The bearing is equipped with a double-sided rubber contact seal, which effectively protects the internal parts from dust and moisture, thereby reducing the need for maintenance and extending its service life. The seal also contributes to the quiet operation of the bearing.

The bearing cage is pressed from steel, which guarantees strength and stability during operation. The bearing has a normal radial clearance, which is suitable for most standard applications. The running accuracy is in the P0/PN class, which corresponds to ABEC 1, and provides sufficient accuracy for common mechanical applications.

The operating temperature range of the bearing is from -30 °C to +120 °C, which allows it to be used in various climatic conditions. The bearing is not insulated against the passage of electrical current, which is important to consider in applications where electrical connections may occur. Weighing only 0.01 kg, the ZEN MR 85-2RS bearing is ideal for applications where weight is a critical factor. Overall, this bearing is suitable for a wide range of industrial and consumer applications where small dimensions, low weight and high reliability are required.
