ZEN MF 62-2Z ball bearing with flange

Product detailed description

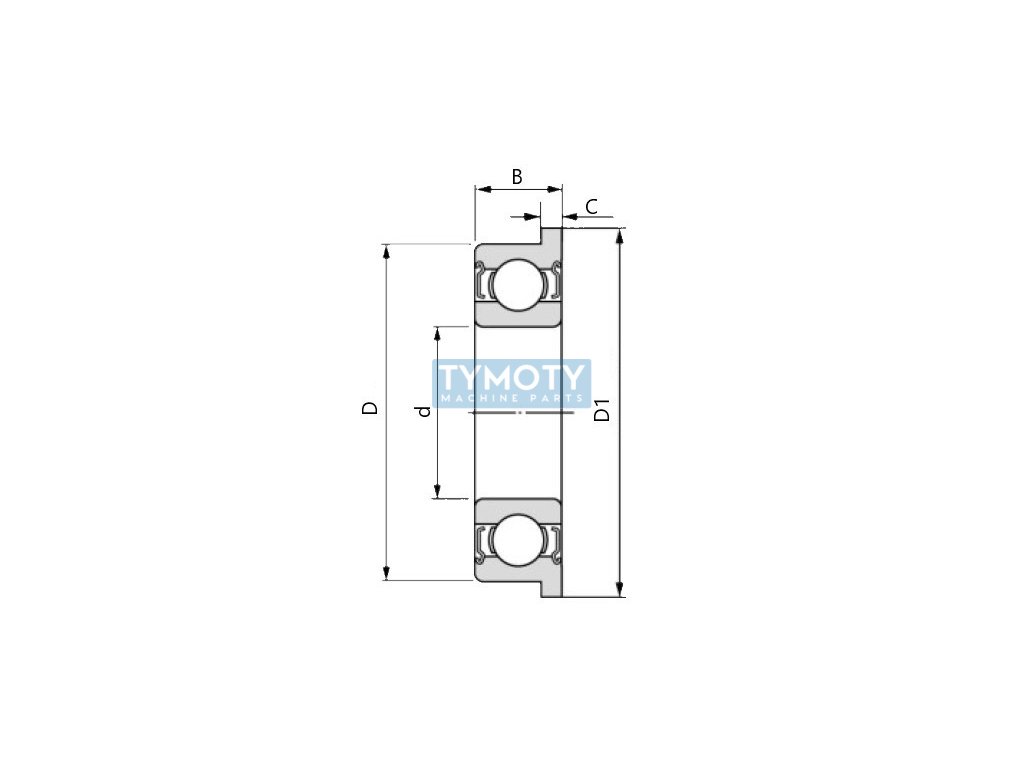

The ZEN MF 62-2Z flanged ball bearing is a precision component designed for applications requiring high accuracy and reliability. This bearing is a deep groove type, which ensures the effective transmission of radial and axial loads. The inner diameter of the bearing is 2 mm, the outer diameter is 6 mm and the width is 2.5 mm, while the flange on the outer ring has a diameter of 7.2 mm and a width of 0.6 mm.

The bearing is made of standard steel for rolling bearings, which ensures its durability and long service life. The rolling elements are also made of this steel, which contributes to the overall robustness of the structure. The bearing is equipped with a pressed steel cage, which ensures proper ball guidance and minimizes friction.

An important feature of this bearing is its double-sided sheet metal cover (designation 2Z), which provides protection against contamination and retains lubricant inside the bearing, thus contributing to its maintenance-free operation. The bearing has normal radial clearance and falls into the accuracy class P0/PN, which corresponds to ABEC 1, i.e. the basic accuracy level suitable for common applications.

The operating temperature range of the bearing is from -20 °C to +120 °C, and it can withstand temperatures from -30 °C to +150 °C for short periods. The bearing is not insulated against the passage of electric current, which is important to consider when using it in electrical equipment.

Weighing only 0.001 kg, this bearing is ideal for applications where low weight and compact dimensions are important. Thanks to its properties, it is suitable for a wide range of industrial applications, including small motors, precision mechanisms and other equipment requiring a reliable and efficient bearing solution.
