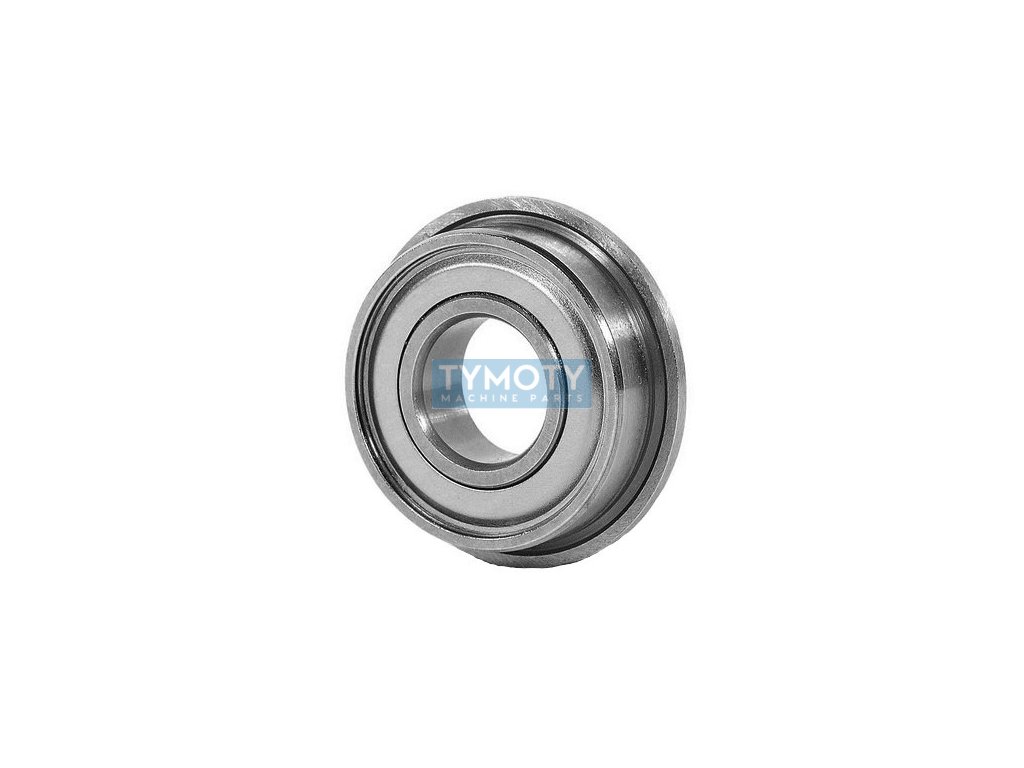

ZEN MF 104-2Z ball bearing with flange
Code: 632210
Product detailed description
No product's description available
Additional parameters
| Category: | Bearings > ball bearing with flange > miniature d=1 to 9mm > d = 4 mm |
|---|---|
| Weight: | 0.002 kg |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 10, 4 |
| Diameter d1 (mm): | 11,2 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | ZEN |
| Material: | steel |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -30 |
| Seal: | double-sided cover, sheet metal |
| The shape of the outer ring: | with flange |
| Width B (mm): | 4 |
| Width C (mm): | 0,8 |
| Značení: | MF104-2Z |
| Typ: | kuličkové ložisko s přírubou |
