ZEN GE30 AW axial spherical plain bearing

Product detailed description

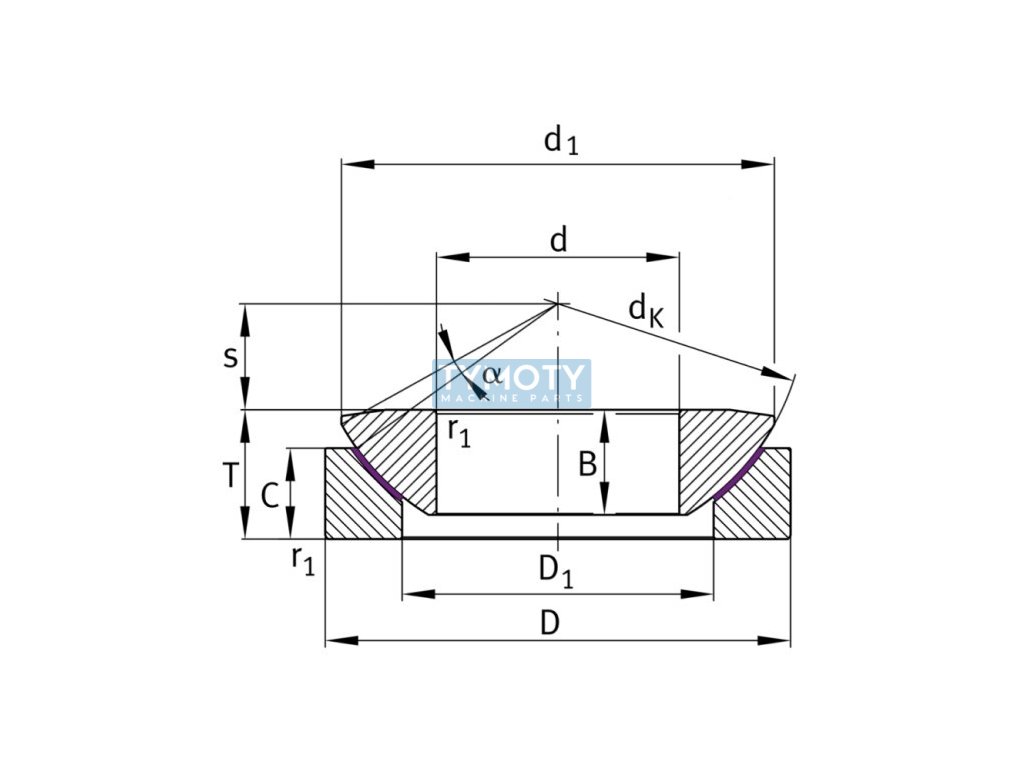

The ZEN GE30 AW axial spherical plain bearing is a highly specialized component designed for applications where precise axial movements and force transmission are required. This bearing has an inner diameter (d) of 30 mm, an outer diameter (D) of 75 mm and an overall width (T) of 26 mm. Its construction includes steel material combined with PTFE fabric, which ensures high wear resistance and a low coefficient of friction, thus minimizing the need for maintenance.

The bearing is designed without seals, which means that it is suitable for applications where protection against external dirt or moisture is not required. Its maintenance-free design is ideal for use in environments with limited service access. The hole profile is cylindrical, which facilitates mounting on the shaft.

The operating temperature range is from -40 °C to +150 °C, which allows it to be used in a wide range of industrial applications, including those exposed to extreme temperature conditions. The bearing has a radius of curvature (r1) of 1 mm and is capable of operating at an angle of 6°, which provides flexibility in applications where slight angular movements occur.

The weight of the bearing is 0.652 kg, which is important for applications where the weight of the components is critical. The bearing does not contain a lubrication hole, which emphasizes its maintenance-free nature. Thanks to these features, the ZEN GE30 AW is an ideal solution for applications requiring reliable and efficient transmission of axial forces without the need for frequent servicing.
