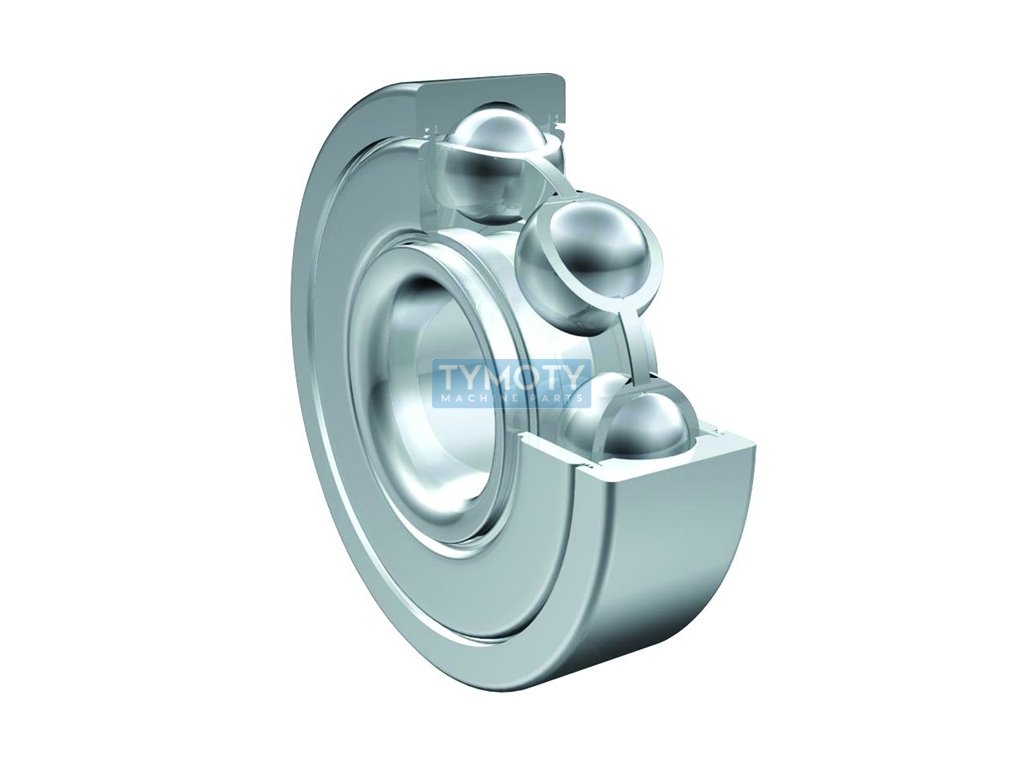

ZEN 695-2Z (619/5-2Z) deep groove ball bearing

Product detailed description

The ZEN 695-2Z (619/5-2Z) ball bearing is a single-row deep groove ball bearing designed for various applications requiring high precision and reliability. This bearing has an inner diameter of 5 mm, an outer diameter of 13 mm and a width of 4 mm. The bearing is made of high-quality standard steel for rolling bearings, which ensures its durability and long service life.

The bearing is equipped with a double-sided sheet metal cover that provides protection against dust and other contaminants, thereby contributing to an increase in the service life of the bearing. These covers also minimize lubricant leakage, which is important for maintaining optimal operating conditions. The bearing has a normal radial clearance that is suitable for most standard applications.

The bearing cage is made of pressed steel, which contributes to its strength and stability during operation. The bearing is designed for operation in the temperature range from -30 °C to +150 °C, with the optimal temperature range being from -20 °C to +120 °C. The running accuracy is in accordance with the accuracy class P0/PN, which corresponds to ABEC 1.

The outer ring of the bearing does not have a flange or groove, which allows its easy integration into various designs. The inner bore of the bearing is cylindrical, which is a standard solution for this type of component. The bearing is not equipped with insulation against the passage of electrical current, which must be considered when using it in electrical applications.

Weighing only 0.003 kg, this bearing is lightweight and suitable for applications where low component weight is important. The manufacturer ZEN is known for its quality and reliability, which makes this bearing a suitable choice for a wide range of industrial applications.
