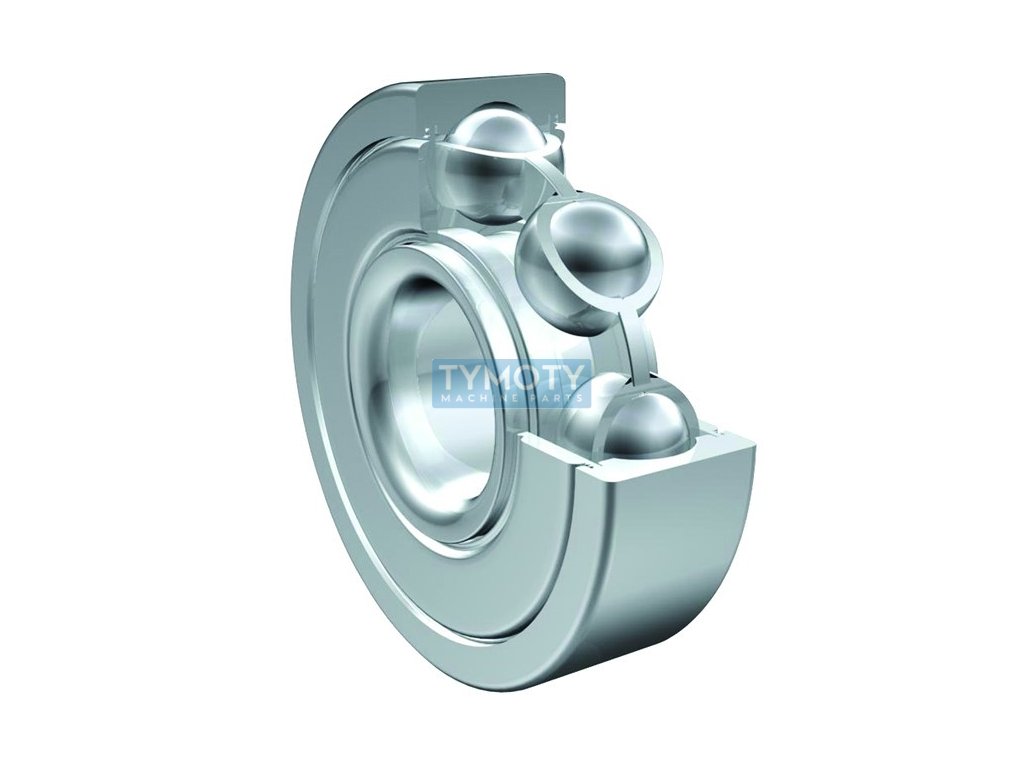

ZEN 688-2Z W6 (638/8-2Z) deep groove ball bearing

Product detailed description

The ZEN 688-2Z W6 (638/8-2Z) deep groove ball bearing is a single row deep groove ball bearing designed for applications requiring high precision and reliability. This bearing has an inner diameter of 8 mm, an outer diameter of 16 mm and a width of 6 mm, making it suitable for compact mechanical assemblies.

The bearing is made of standard steel for rolling bearings, which guarantees high wear resistance and long service life. The rolling elements are also made of steel, which increases the overall durability of the bearing. The bearing is equipped with a pressed steel cage, which ensures optimal ball guidance and minimizes friction.

This bearing is equipped with a double-sided sheet metal seal (2Z), which protects the internal components from dust and dirt, thus extending its service life and reducing the need for maintenance. The seal also allows the bearing to operate in a temperature range from -30 °C to +150 °C, making it suitable for various industrial applications.

The running accuracy of the bearing is in class P0/PN, which corresponds to ABEC 1, and provides sufficient accuracy for common industrial use. The bearing has normal radial clearance, which means that it is able to absorb standard operating loads without excessive wear.

The ZEN 688-2Z W6 bearing is ideal for applications where high accuracy, reliability and minimal maintenance are required, while its compact dimensions allow for use in limited spaces. The total weight of the bearing is 0.003 kg, which contributes to its easy handling and installation.
