ZEN 61900 deep groove ball bearing

Product detailed description

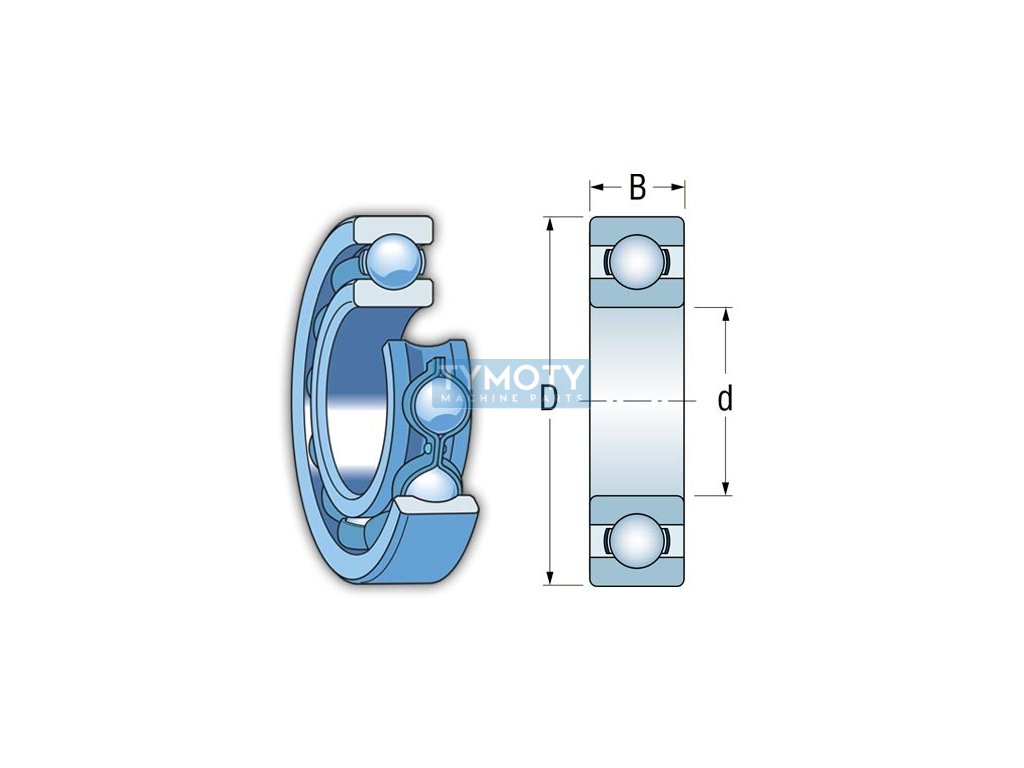

The ZEN 61900 deep groove ball bearing is a single row deep groove ball bearing designed for a wide range of applications where high precision and reliability are required. This bearing has an inner diameter of 10 mm, an outer diameter of 22 mm and a width of 6 mm, making it suitable for compact designs with limited space.

It is made of standard rolling bearing steel, which guarantees high wear resistance and long service life. The bearing is equipped with a pressed steel cage, which ensures optimal ball guidance and reduces friction. The internal radial clearance is normal, which provides a balanced compromise between running accuracy and the ability to absorb thermal expansion.

The ZEN 61900 bearing is unsealed, which means it is open and suitable for applications where protection against external contaminants is not required or where external lubrication is provided. The operating temperature range is from -20 °C to +150 °C, which allows its use in various climatic conditions.

The running accuracy corresponds to class P0/PN, or ABEC 1, which is the basic level of accuracy suitable for common industrial applications. The bearing is not equipped with insulation against the passage of electrical current, and therefore is not suitable for applications where electrical insulation is required.

This bearing is ideal for use in various industrial equipment, such as electric motors, gearboxes and other mechanical systems, where reliability and efficiency in the transmission of rotational motion are required. The weight of the bearing is 0.01 kg, which contributes to its easy handling and installation.
