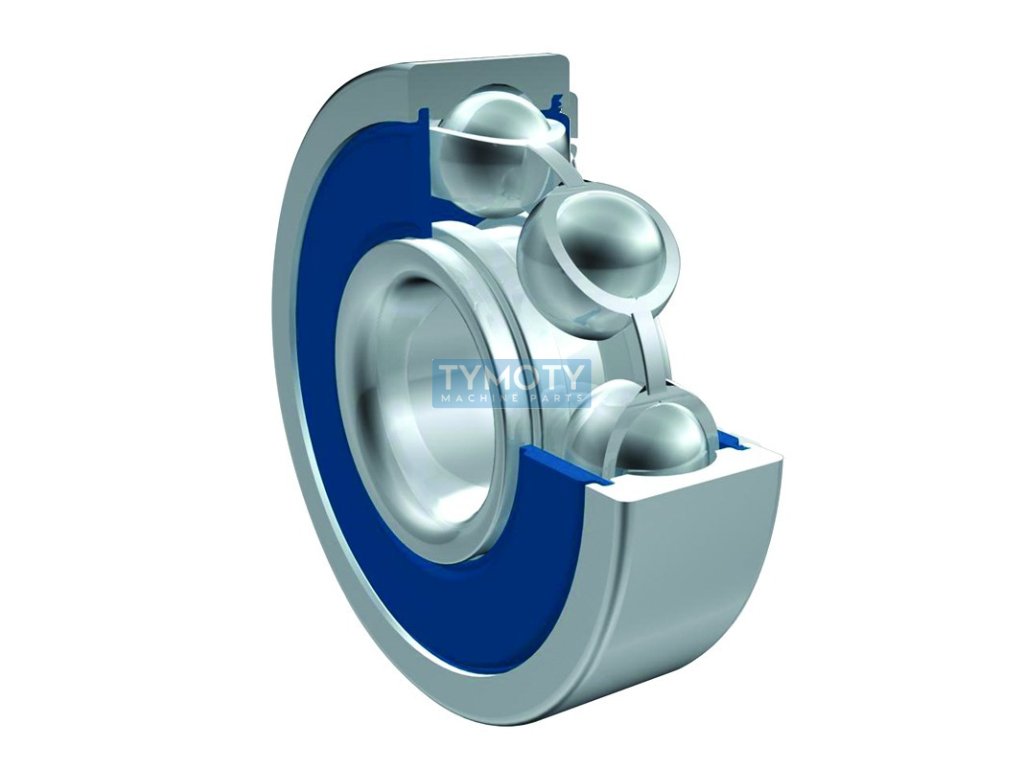

ZEN 61708-2RS deep groove ball bearing

Product detailed description

The ZEN 61708-2RS deep groove ball bearing is a single row deep groove ball bearing designed for applications requiring high precision and reliability. With an inner diameter of 40 mm, an outer diameter of 50 mm and a width of 6 mm, this bearing is ideal for compact designs where space is limited.

The bearing is made of standard rolling bearing steel, which guarantees high strength and wear resistance. The rolling elements are also made of steel, which contributes to the overall life and performance of the bearing. The raceways are without flange or groove, which allows easy integration into various mechanical systems.

The bearing is equipped with a double-sided rubber contact seal, which effectively protects against the ingress of dirt and moisture, thereby extending the life of the bearing and reducing the need for maintenance. The seal also allows operation in a temperature range from -30 °C to +120 °C, which makes the bearing suitable for a wide range of operating conditions.

The bearing cage is pressed from steel, which ensures stability and precise guidance of the rolling elements. The bearing falls into the accuracy class P0/PN, or ABEC 1, which is the standard accuracy for common applications. Normal radial clearance ensures an optimal balance between freedom of movement and stability.

With a weight of 0.023 kg, the bearing is lightweight, which contributes to reducing the overall weight of the equipment in which it is used. The ZEN 61708-2RS bearing is suitable for various industrial applications where reliability and efficiency are required while maintaining compact dimensions.
