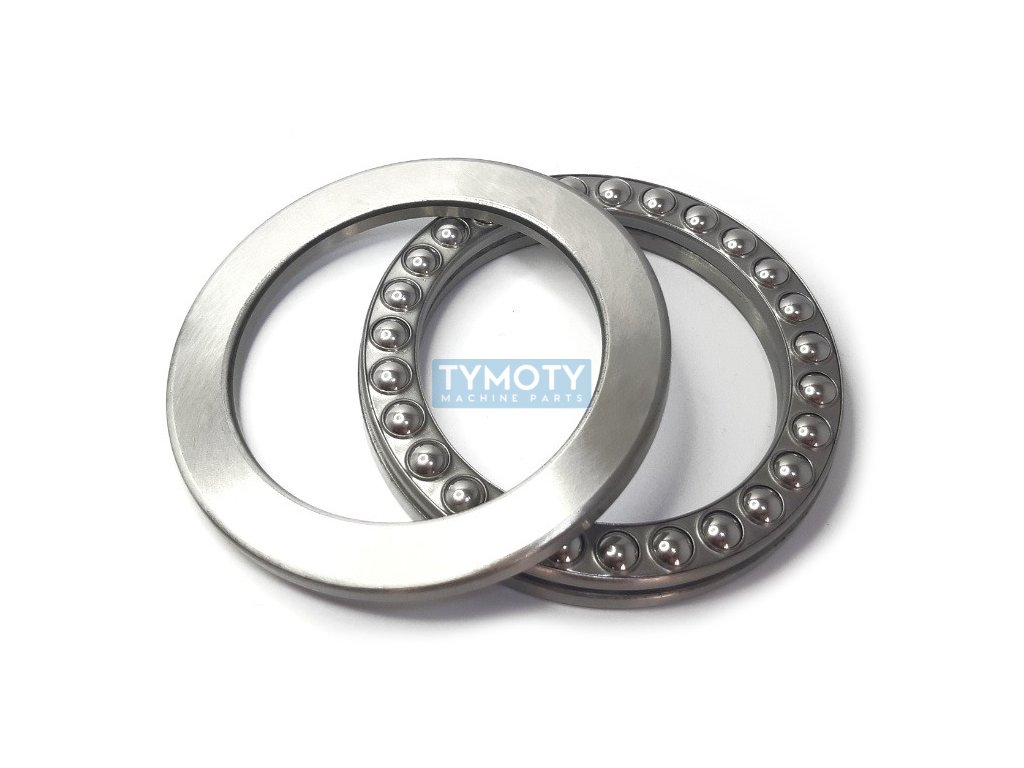

ZEN 51100 axial ball bearing

Product detailed description

ZEN 51100 thrust ball bearing is specially designed for applications where axial load needs to be transferred in one direction. This bearing has an inner diameter of 10 mm, an outer diameter of 24 mm and a width of 9 mm. It is made of high-quality standard steel for rolling bearings, which guarantees its long service life and reliability in operation.

The bearing is equipped with a pressed steel cage, which ensures stability and precise ball guidance. Thanks to the accuracy class P0/PN, or ABEC 1, it is suitable for applications where extremely high demands on running accuracy are not required. The operating temperature range of the bearing is from -30 to +150 °C, which allows its use in various industrial conditions.

The hole profile is cylindrical, which simplifies the assembly and disassembly of the bearing. The bearing does not have the possibility of angular adjustment, which means that it is designed exclusively for the transmission of axial loads without the possibility of misalignment compensation. The total weight of the bearing is 0.02 kg, which contributes to its easy handling and installation.

The manufacturer ZEN is known for its quality and reliability, which guarantees that the 51100 bearing will meet the requirements of even demanding applications. The product is supplied as a separate thrust ball bearing without additional accessories.
