ZEN 16021 deep groove ball bearing

Product detailed description

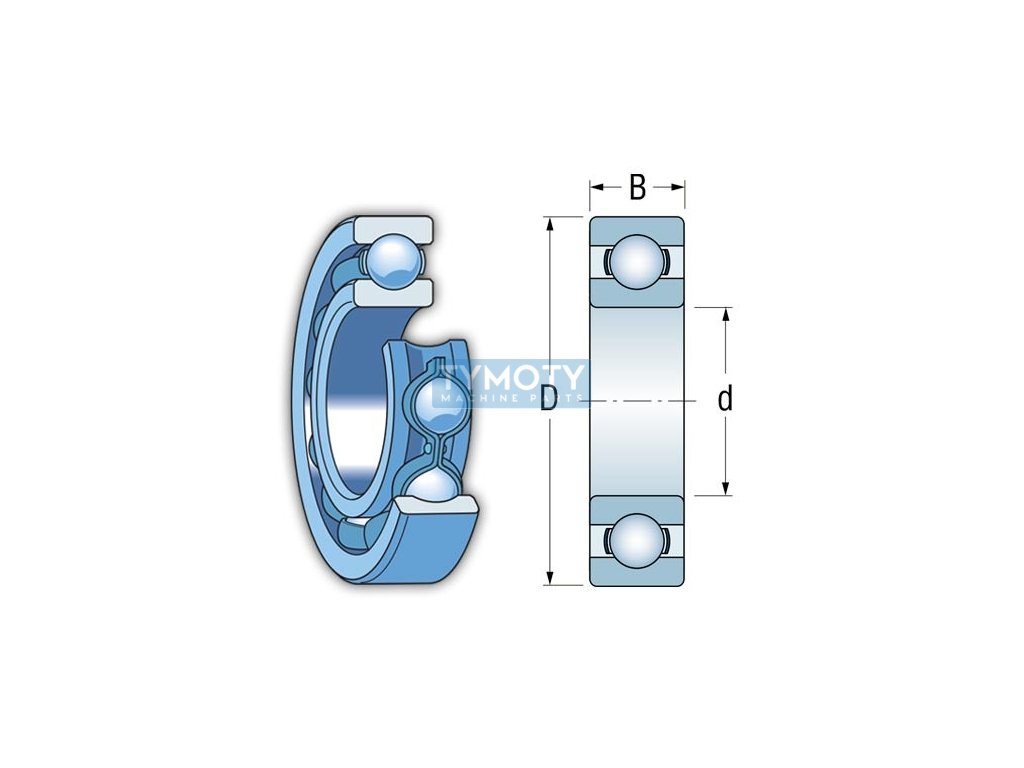

The ZEN 16021 ball bearing is precisely designed for applications requiring reliability and efficiency under standard operating conditions. This bearing has an inner diameter (d) of 105 mm, an outer diameter (D) of 160 mm and a width (B) of 18 mm, making it suitable for a wide range of industrial applications.

The bearing is made of high-quality standard rolling bearing steel, which ensures long life and wear resistance. The rolling elements are also made of this steel, which contributes to the overall robustness and reliability of the component. The bearing is equipped with a pressed steel cage, which ensures optimal ball arrangement and reduces friction.

This bearing is unsealed, which means it is uncovered and is intended for applications where protection from external dirt or lubricants is not required. The internal radial clearance is normal, which is suitable for most standard applications where special clearance adjustments are not required.

The operating temperature range of the bearing is from -20 °C to +150 °C, which allows it to be used in various environments without the risk of heat damage. The running accuracy is classified as P0/PN or ABEC 1, which is the standard accuracy for most common applications where high levels of accuracy are not required.

The ZEN 16021 bearing is single-row, which means that it contains one row of balls, and is equipped with a cylindrical bore, which allows easy installation on the shaft. Due to the absence of insulation against electrical current, it is suitable for use in applications where protection against electrical discharges is not required.

The total weight of the bearing is 1.228 kg, which is optimal for its design parameters and ensures easy handling and installation within industrial equipment. The ZEN 16021 bearing is an ideal choice for applications where reliability and efficiency are required while maintaining standard operating conditions.
