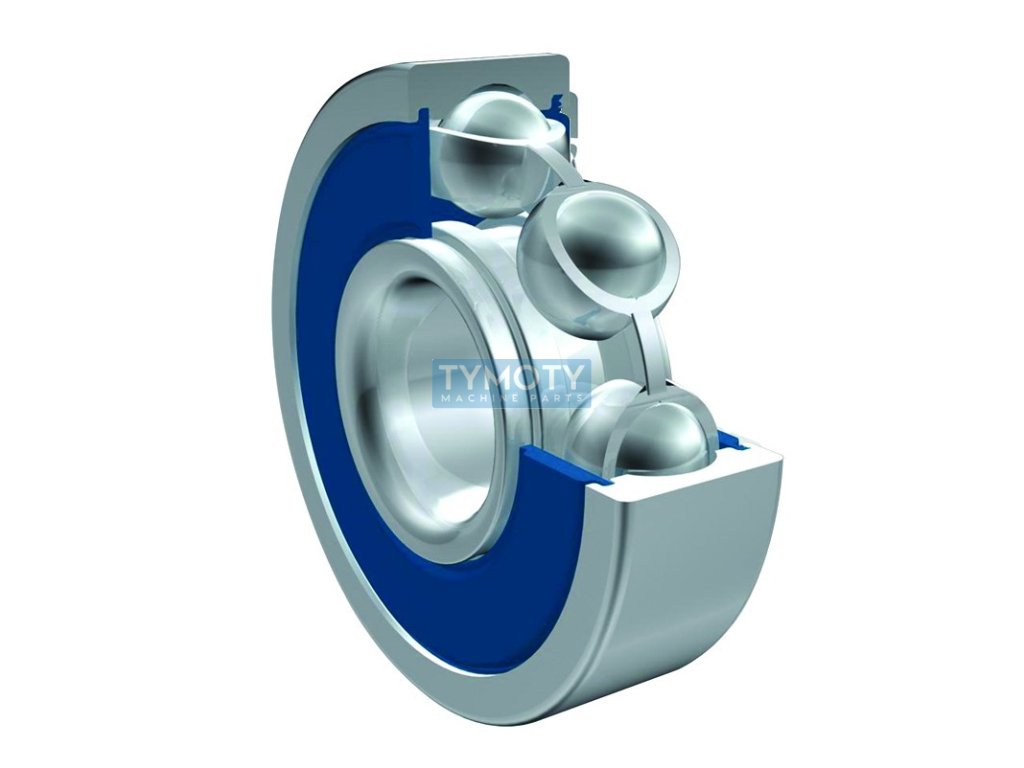

ZEN 16004-2RS deep groove ball bearing

Product detailed description

ZEN 16004-2RS is a single row deep groove ball bearing designed for a wide range of applications. The bearing has an inner diameter of 20 mm, an outer diameter of 42 mm and a width of 8 mm. It features a cylindrical bore and is made of high-quality standard steel for rolling bearings, which ensures its durability and long service life.

The bearing is equipped with a double-sided rubber contact seal, which provides effective protection against dust and dirt, thereby extending the life of the bearing and reducing the need for maintenance. The steel cage is pressed, which ensures stability and precise guidance of the rolling elements. The bearing has normal radial clearance, which is suitable for most standard applications.

The running accuracy of the bearing is in the P0/PN class, which corresponds to ABEC 1, and is suitable for applications where extremely high speeds or accuracy are not required. The operating temperature range is from -30 °C to +120 °C, which allows the bearing to be used in various environments and conditions.

The ZEN 16004-2RS bearing is without insulation against the passage of electrical current and has no flanges or grooves on the outer ring. With a weight of 0.05 kg, it is lightweight and easy to integrate into various mechanical systems. Thanks to its properties, it is ideal for use in industrial equipment, the automotive industry and other technical applications where reliability and efficiency are required.
