Wire retaining ring for hole DIN 7993B 32 mm

Product detailed description

The DIN 7993B wire retaining ring with a diameter of 32 mm is a structural element designed to ensure axial stability of components inside a hole. This ring is made of spring steel, which provides it with the necessary flexibility and resistance to deformation during application. Spring steel is known for its ability to maintain shape and elasticity even after repeated loading, which is key to the function of the retaining ring.

The ring has a thin circular profile, which is ideal for applications with limited mounting space, where it is necessary to secure components without the possibility of using more massive fasteners. Its design allows for easy axial locking, which is suitable for less demanding applications where extreme load requirements are not imposed.

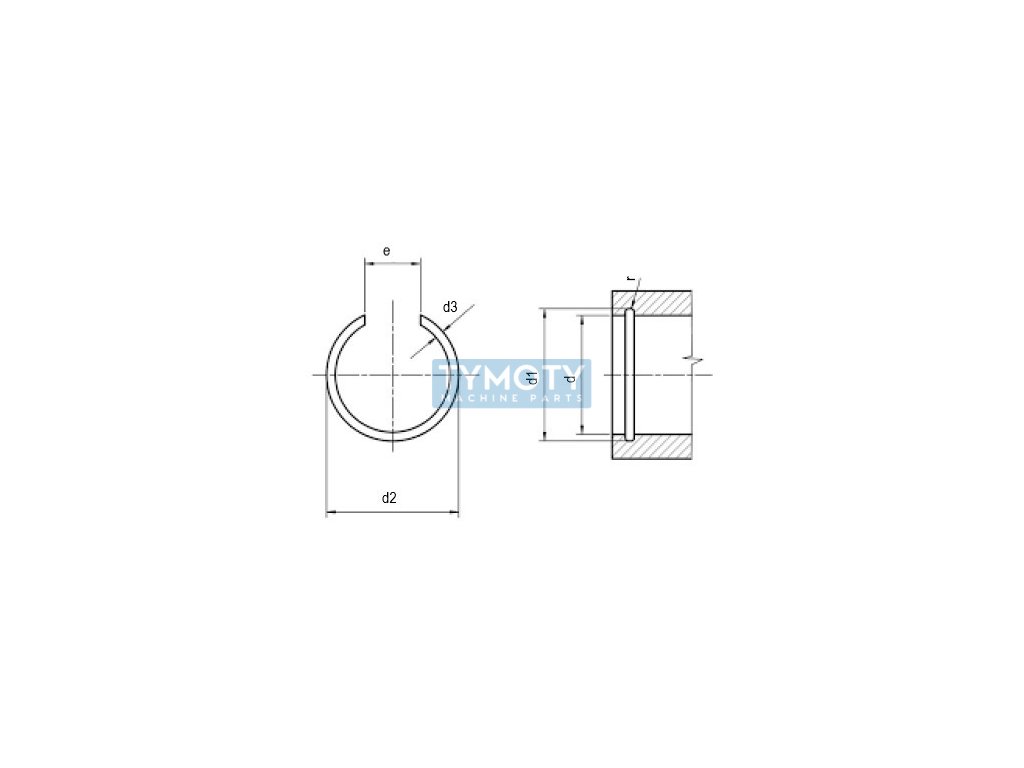

Technical parameters include diameter d 32 mm, diameter d1 34.5 mm, diameter d2 34.9 mm, and diameter d3 2.5 mm. The radius r is 1.4 mm and the width e is 12 mm. These dimensions are designed to ensure optimal functionality and reliability of the ring within the specified applications.

The DIN 7993B standard, according to which the ring is manufactured, guarantees that the product meets internationally recognized standards of quality and accuracy. The ČSN 022925 standard is also listed, which provides local standards for use within the Czech Republic and Slovakia.

This circlip is supplied without surface treatment, which can be an advantage in applications where additional corrosion protection is not required or where it is necessary to preserve the natural properties of spring steel. Its use is suitable in various industrial sectors where it is necessary to ensure reliable and simple locking of components in holes.
