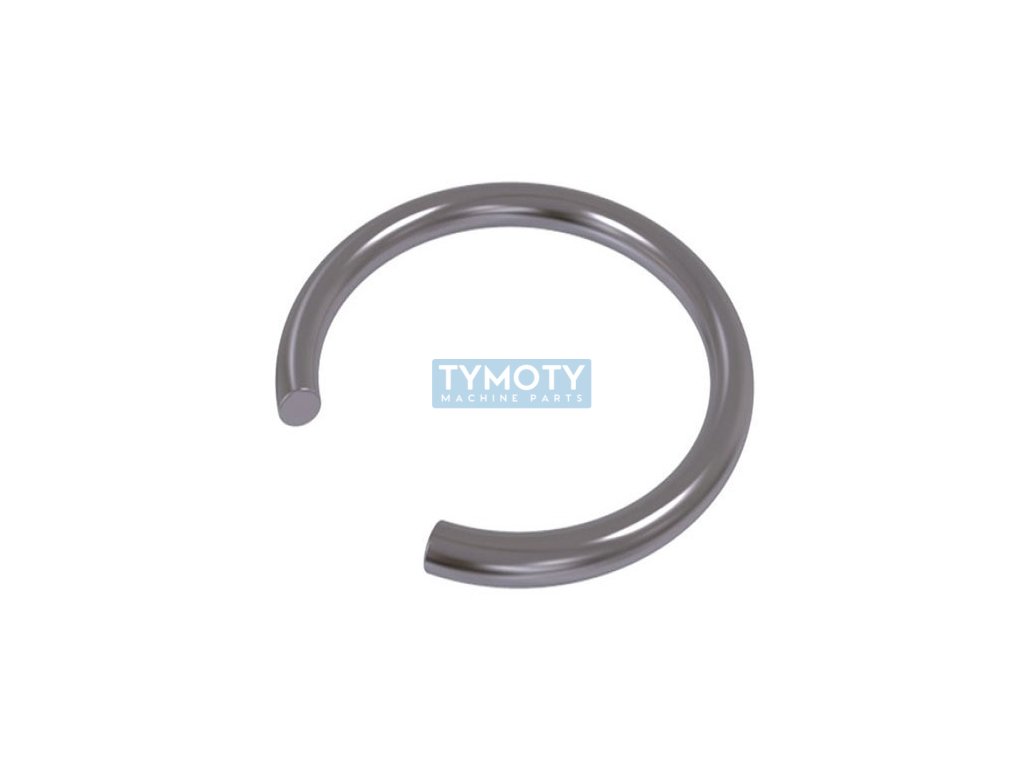

Wire retaining ring for hole DIN 7993B 16 mm
Code: 857146
Product detailed description
Wire retaining ring for hole, spring steel without surface treatment DIN 7993B.Additional parameters
| Category: | Fasteners > circlips > into the hole DIN 7993B wire |
|---|---|
| Weight: | 0.001 kg |
| EAN: | 4051427214965 |
| CSN standard: | 022925 |
| Diameter D (mm): | 16 |
| Diameter d1 (mm): | 17,6 |
| Diameter D2 (mm): | 17,8 |
| Diameter d3 (mm): | 1,6 |
| DIN standard: | 7993B |
| Material: | spring steel |
| Radius r (mm): | 0,9 |
| Width e (mm): | 6 |
