Wire retaining ring for DIN 7993B 30 mm hole

Product detailed description

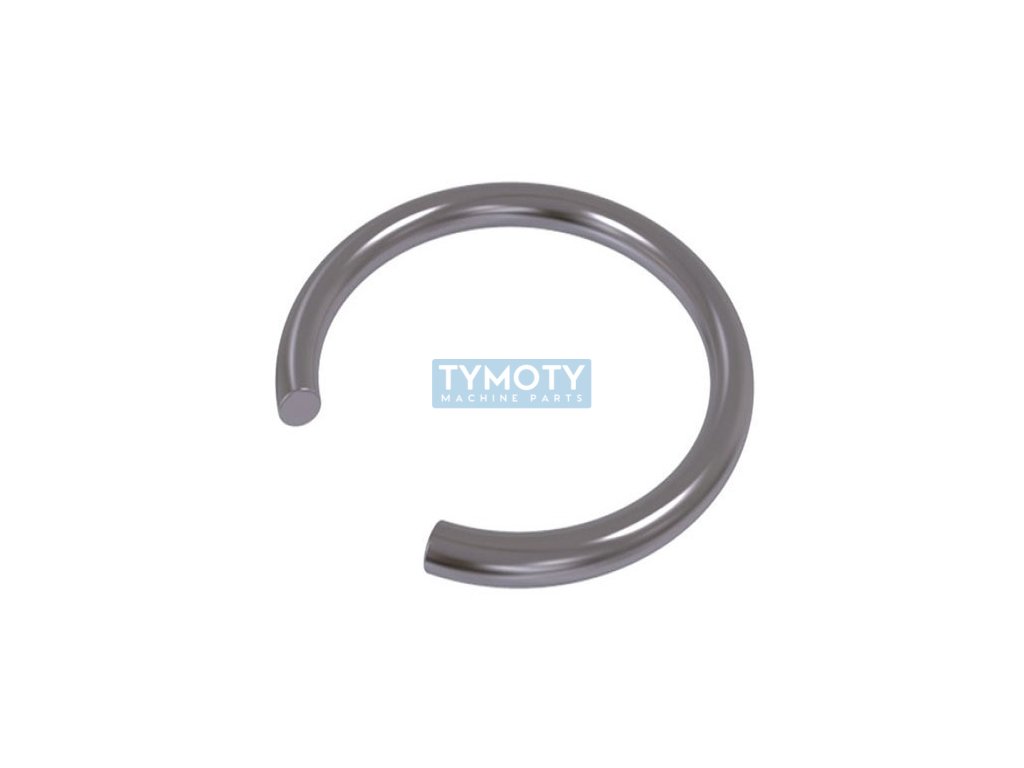

The wire retaining ring in the hole according to DIN 7993B with a diameter of 30 mm is designed for easy axial locking of components inside holes. This component is made of spring steel, which provides the necessary elasticity and resistance to deformation, but without a surface treatment, which is important to consider in applications exposed to corrosive conditions.

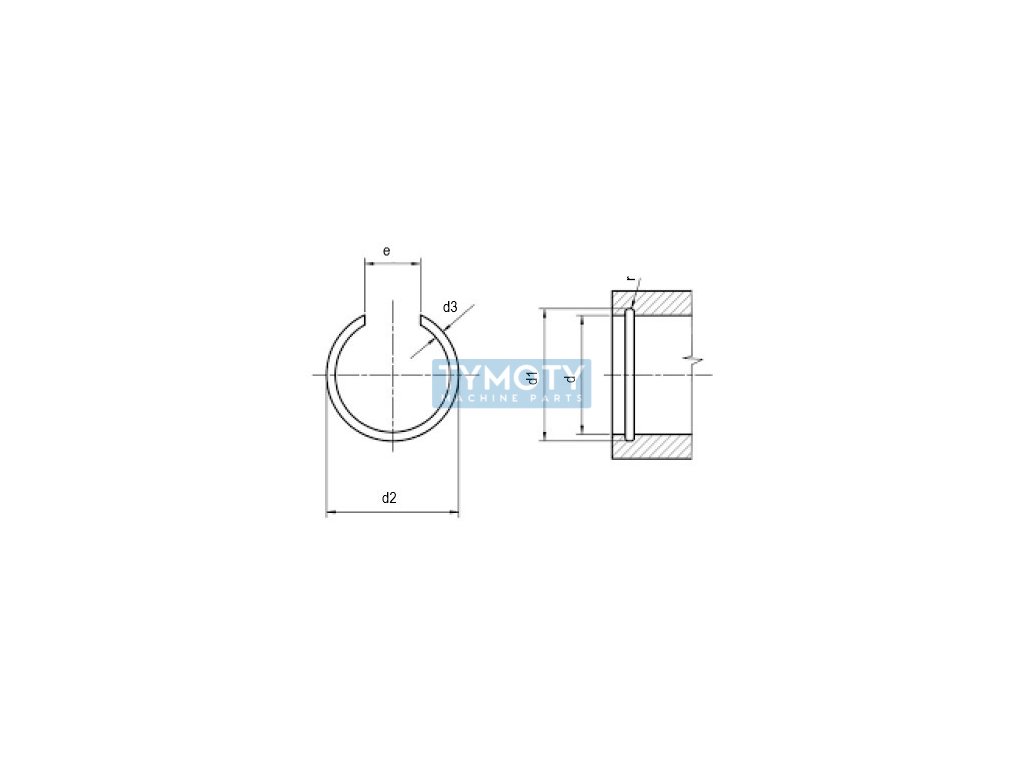

The ring has a circular profile with a wire diameter d3 of 2 mm, which allows it to be used in limited installation spaces where it is necessary to minimize the dimensions of the components. The diameter of the hole d is 30 mm, while the outer diameter d1 is 32 mm and the maximum dimension d2 reaches 32.3 mm. The width of the ring e is 10 mm and the radius r is 1.1 mm, which ensures optimal stress distribution under load.

This type of circlip is suitable for less demanding applications where high demands are not placed on load or resistance to external influences. The ČSN 022925 standard is equivalent to the DIN 7993B standard, which guarantees compatibility and standardization within the framework of European technical standards.

Due to its design features, this wire ring is ideal for applications where it is necessary to ensure reliable and simple securing of components in holes with minimal space requirements and assembly operations.
