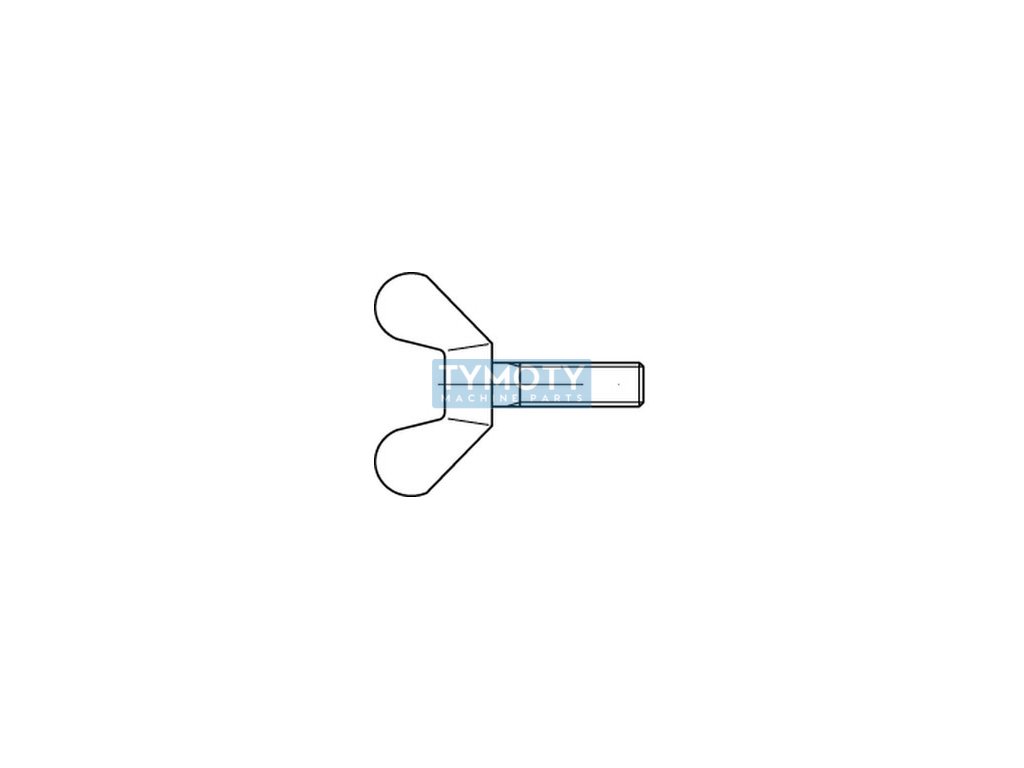

Wing screw GT DIN 316 M12x50 galvanized

Product detailed description

Wing bolt GT DIN 316 M12x50 is manufactured according to DIN 316 standard, which is equivalent to ČSN 021365, and is characterized by a German form. This type of bolt is made of malleable cast iron or steel and surface treated with galvanic zinc, which provides protection against corrosion and increases its resistance in various operating conditions. The white zinc surface treatment ensures an aesthetic appearance and additional protection against oxidation.

The bolt has a metric thread M12, which means that the outer diameter of the thread is 12 mm. The length of the bolt is 50 mm, which is the distance from the bottom of the head to the end of the thread. The wing head allows easy handling without the need for tools, which is advantageous in applications where frequent loosening and tightening are required.

Product class C indicates that the bolt is intended for general use where extreme strength requirements are not imposed. Thanks to its design, it is suitable for applications where quick and easy adjustment or fastening is required, such as machine covers, instrument panels or other devices where frequent opening and closing is required.

The GT DIN 316 M12x50 wing screw is an ideal solution for applications requiring reliable and quick fastening with the possibility of frequent manual adjustment.
