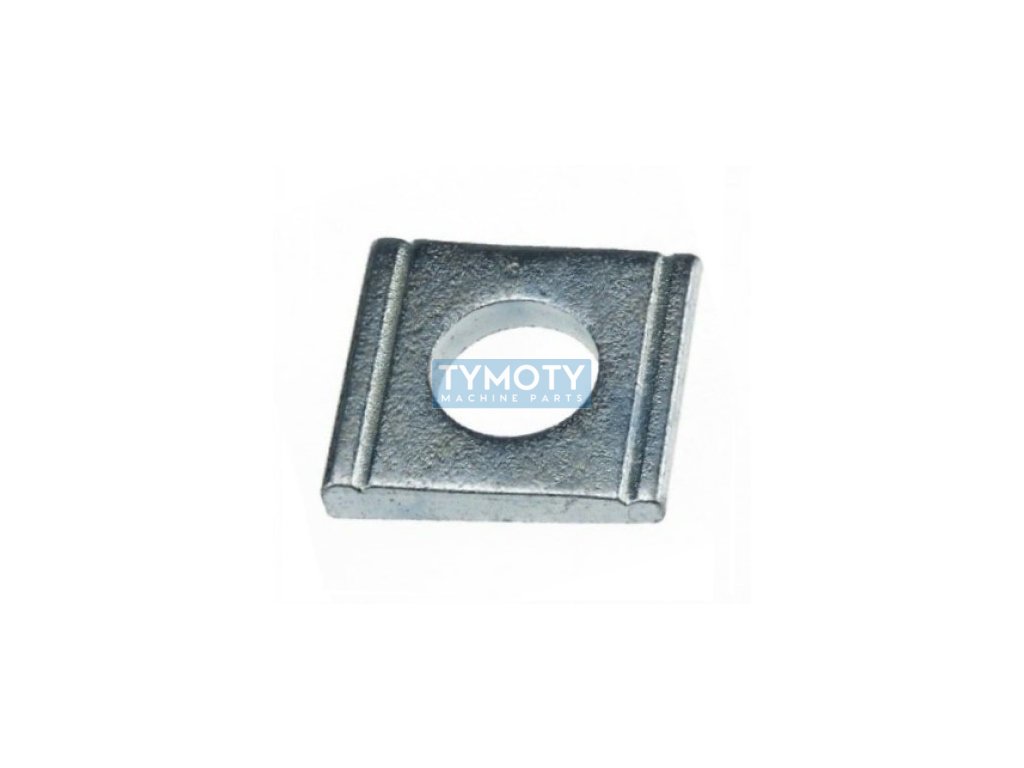

Wedge washer for U profiles DIN 434 M12 / 13.5 galvanized

Product detailed description

The wedge washer for U-profiles according to DIN 434 is specifically designed for use with U-shaped profiles. This washer is made of steel and is galvanically galvanized, which ensures increased corrosion resistance and extends its service life in harsh conditions. The zinc coating is carried out with an 8% slope, which ensures optimal force distribution and stability during assembly.

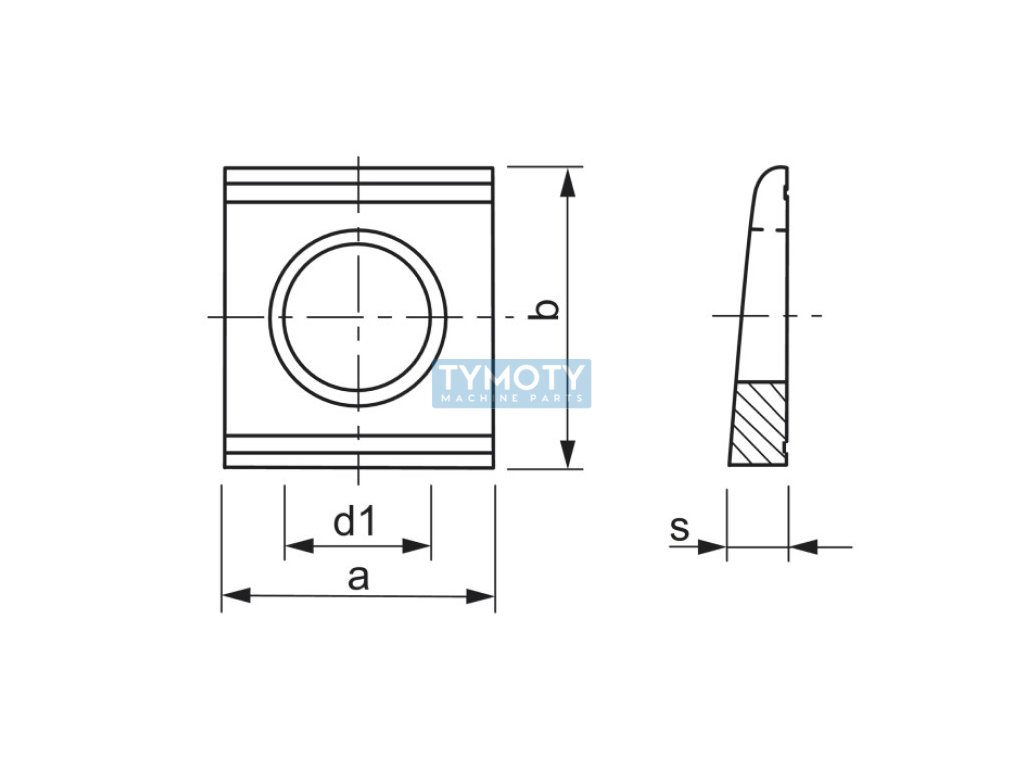

The washer has a square shape and a wedge profile, which is designed to compensate for unevenness or slopes in the structure, thus ensuring a strong and stable connection. The dimensions of the washer are adapted for use with metric M12 threads, with a hole diameter of 13.5 mm, which allows for precise and secure mounting on screws or threaded rods.

The washer meets the requirements of the ČSN 021739 standard, which guarantees its compatibility and reliability within standardized structural systems. The material hardness is 140 HV, which provides sufficient strength and resistance to mechanical stress. This washer is ideal for use in construction, engineering and other industries where it is necessary to ensure a strong and durable connection of structural elements.
