Washer for wooden structures DIN 440R M30 / 33.0 galvanized
Code: 851732
Product detailed description
Steel washer for wooden structures DIN 440R, ISO 7094, ČSN 021727, galvanized.Additional parameters
| Category: | Fasteners > pads flat > for wooden structures DIN 440R > galvanized steel 100HV |
|---|---|
| Weight: | 0.323 kg |
| EAN: | 8591530079731 |
| CSN standard: | 021727 |

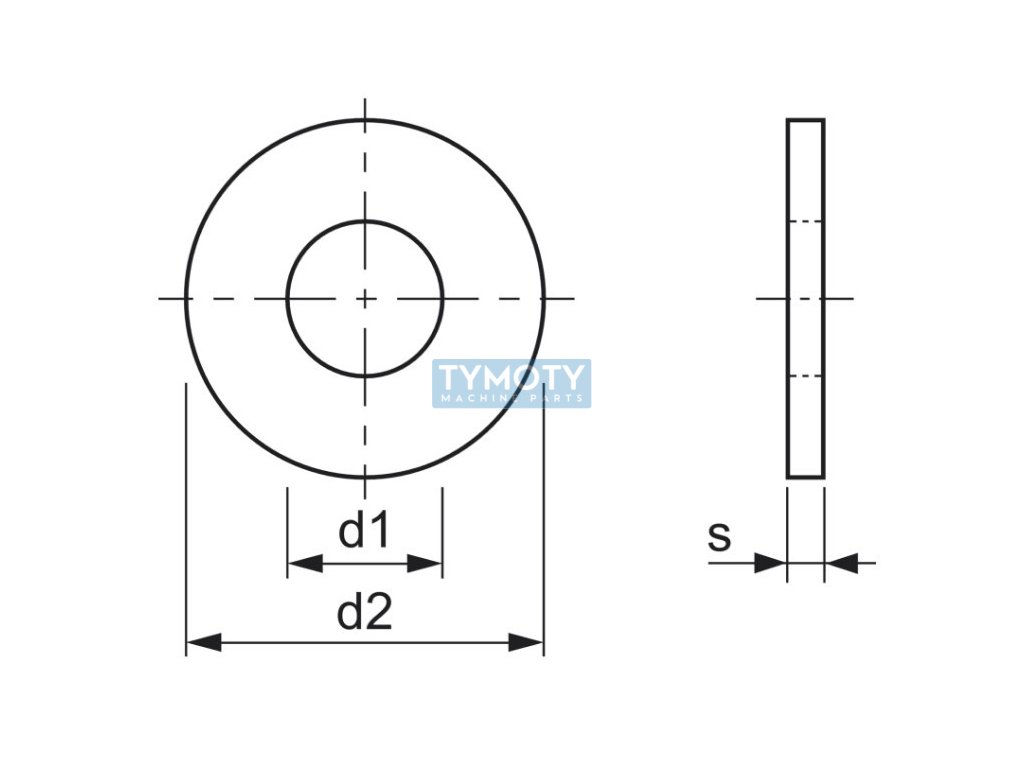

| Diameter d1 (mm): | 33 |
| Diameter D2 (mm): | 105 |
| DIN standard: | 440R |
| Hardness: | 100 HV |
| ISO standard: | 7094 |
| Material: | steel |
| Surface finish: | zinc white |
| Width s (mm): | 6 |
