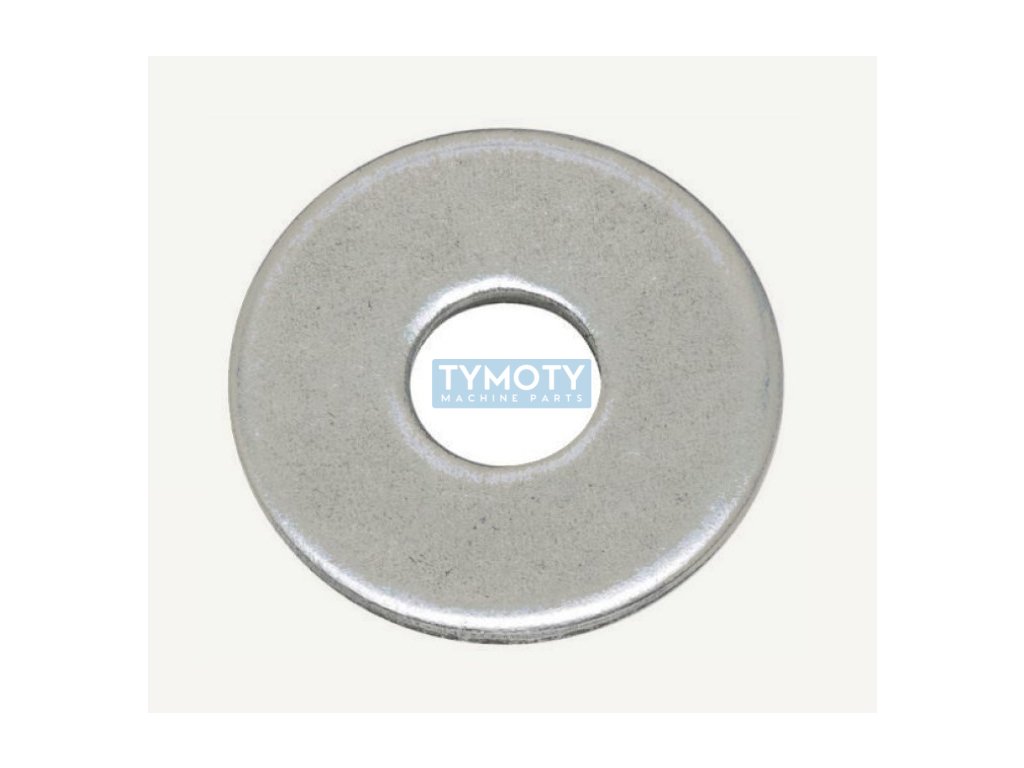

Washer for wooden structures DIN 440R M24 / 26.0 stainless steel A2

Product detailed description

The stainless steel washer for wooden structures according to DIN 440R is intended for use in connection systems where high corrosion resistance and mechanical stability are required. This washer is made of A2 grade stainless steel, which provides optimal corrosion protection under normal atmospheric conditions, making it suitable for outdoor applications and humid environments.

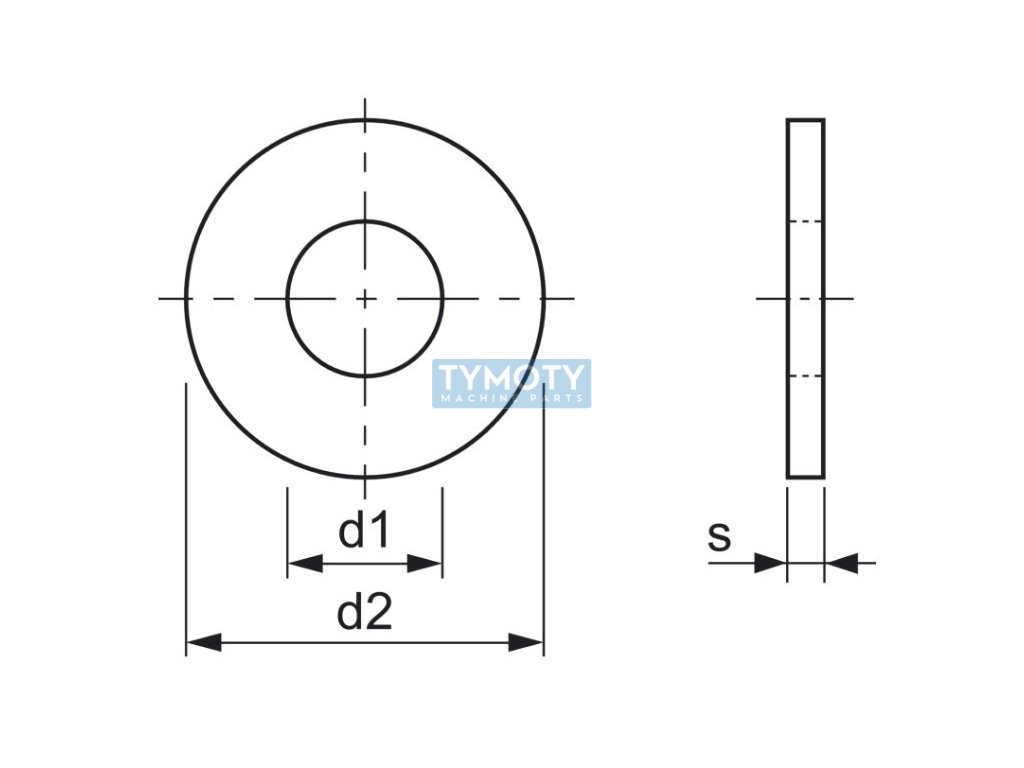

The washer has an outer diameter d2 of 85 mm and an inner diameter d1 of 26 mm, which corresponds to use with threaded rods or screws with metric thread M24. The width of the washer s is 6 mm, which ensures sufficient contact area for even pressure distribution on wooden surfaces, thereby minimizing the risk of material damage.

The DIN 440R, ISO 7094 and ČSN 021727 standards, according to which this washer is manufactured, guarantee its compliance with international quality and dimensional standards. These standards define precise dimensions and tolerances that must be met to ensure compatibility with other components in building and structural applications.

This washer is ideal for use in wooden structures where a strong and reliable connection is required, while its stainless steel material ensures long life and resistance to weathering. It is suitable for use in the construction industry, in the manufacture of wooden frames, gazebos, sheds and other wooden structures.
