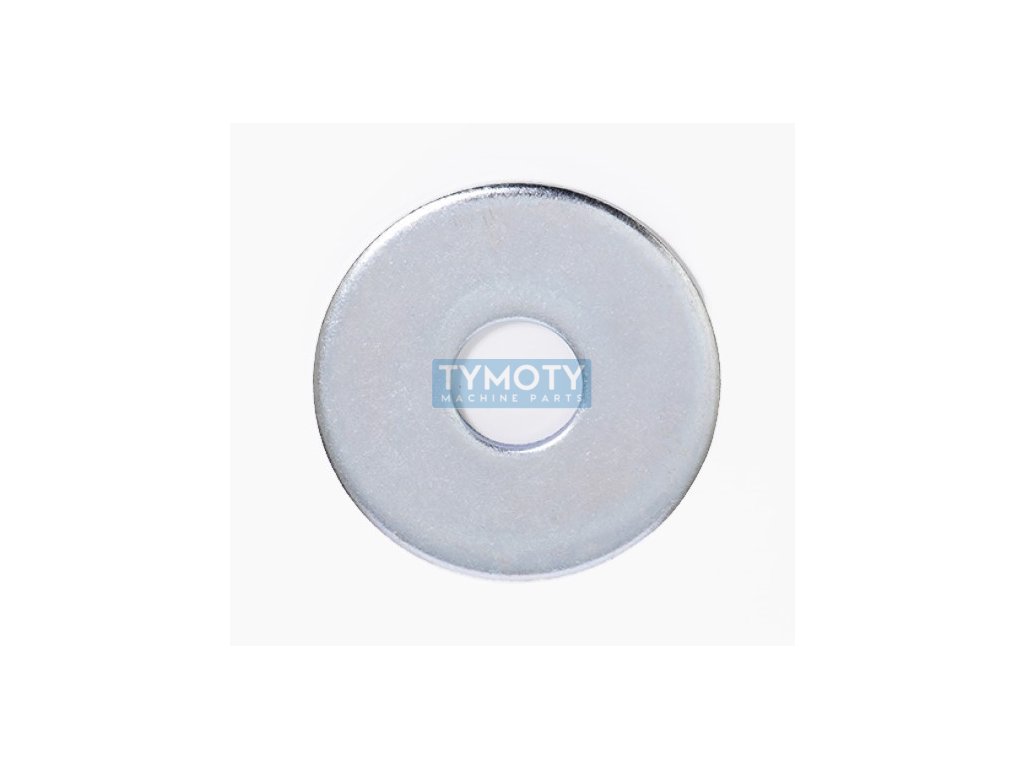

Washer for wooden structures DIN 440R M14 / 15.5 galvanized
Code: 851726
Product detailed description
Steel washer for wooden structures DIN 440R, ISO 7094, ČSN 021727, galvanized.Additional parameters
| Category: | Fasteners > pads flat > for wooden structures DIN 440R > galvanized steel 100HV |
|---|---|
| Weight: | 0.046 kg |
| EAN: | 8591530077072 |
| CSN standard: | 021727 |
| Diameter d1 (mm): | 15,5 |
| Diameter D2 (mm): | 50 |
| DIN standard: | 440R |
| Hardness: | 100 HV |
| ISO standard: | 7094 |
| Material: | steel |
| Surface finish: | zinc white |
| Width s (mm): | 4 |
