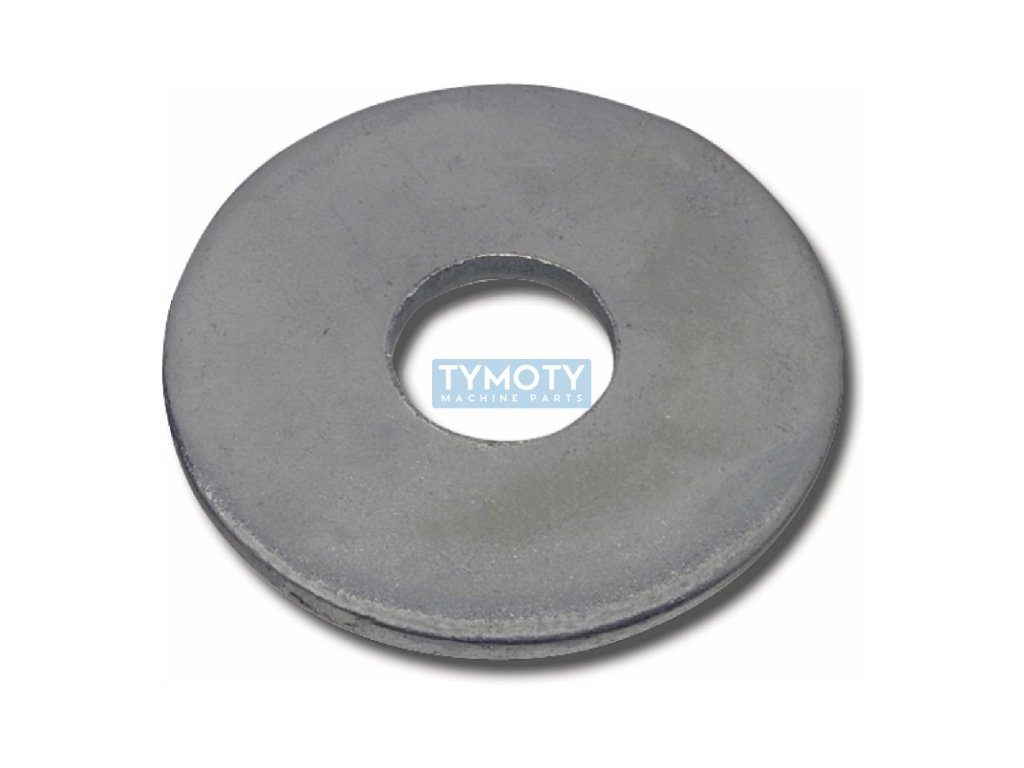

Washer for wooden structures DIN 440R M12 / 13.5 without PU
Code: 851709
Product detailed description
Steel washer for wooden structures DIN 440R, ISO 7094, ČSN 021727, without surface treatment.Additional parameters
| Category: | Fasteners > pads flat > for wooden structures DIN 440R > steel 100HV |
|---|---|
| Weight: | 0.037 kg |
| EAN: | 4043952075951 |
| CSN standard: | 021727 |
| Diameter d1 (mm): | 13,5 |
| Diameter D2 (mm): | 44 |
| DIN standard: | 440R |
| Hardness: | 100 HV |
| ISO standard: | 7094 |
| Material: | steel |
| Surface finish: | without modification |
| Width s (mm): | 4 |
