V-belt XPZ 900 Lw (3VX 355) Gates Quad-Power 4

Product detailed description

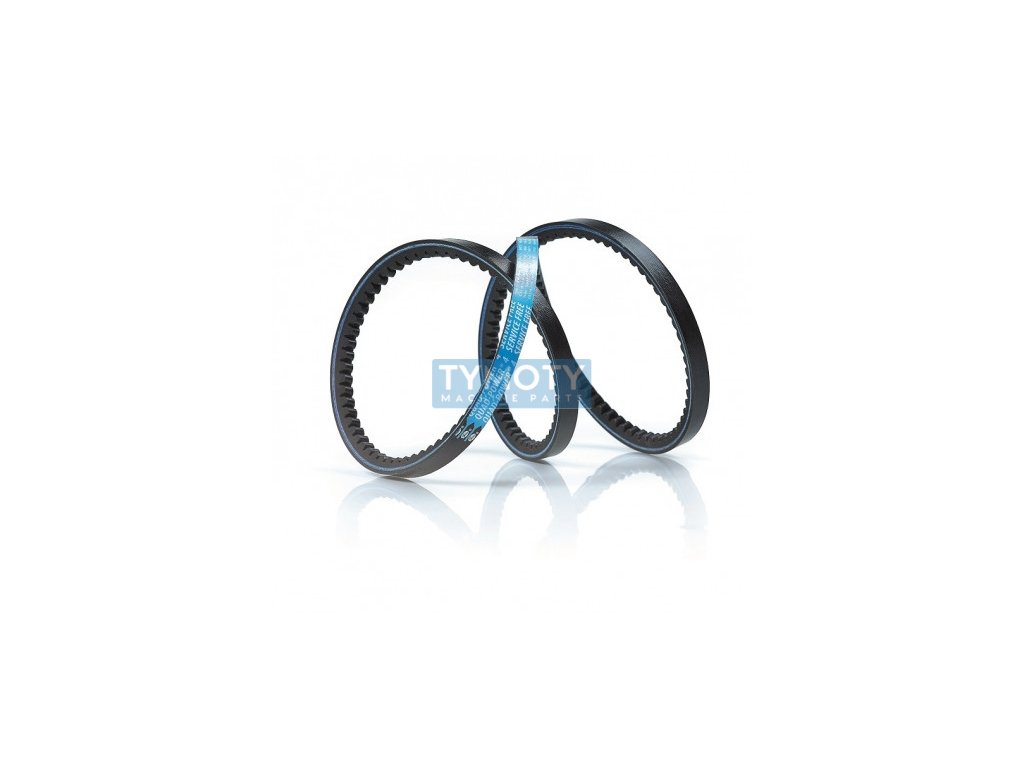

The Gates Quad-Power 4 XPZ 900 Lw (3VX 355) V-belt is a top-notch component designed for the transmission of mechanical energy in industrial applications. This belt belongs to the QUAD-POWER4 series and is manufactured by the renowned manufacturer GATES. Its design is optimized for high efficiency and long service life, which is achieved by using quality materials and precise processing.

The belt has an XPZ profile, which means it is narrow and cut, with precise dimensions: width 9.7 mm and height 8 mm. This profile is designed to provide greater flexibility and better adaptation to pulleys, thereby reducing wear and increasing service life. The belt is made of EPDM (ethylene propylene diene monomer), which is known for its excellent resistance to temperature extremes and chemicals. This material allows the belt to be used in a temperature range from -50 °C to 130 °C.

The V-belt has an internal length Li of 862 mm, a calculated length Lw of 900 mm and an external length La of 913 mm. These dimensions are critical for the correct tension and function of the belt in the system. The belt is equipped with a PES cord, which ensures high strength and resistance to tensile forces. The wedge angle is 36°, which contributes to optimal power transmission and minimization of losses.

This V-belt complies with DIN 7753/1 and ISO 4184 standards, which guarantees its compatibility with various industrial equipment and systems. Its high quality and reliability make it suitable for use in demanding conditions where maximum efficiency and minimum downtime are required.
