V-belt XPZ 850 Lw (3VX 335) Gates Quad-Power 4

Product detailed description

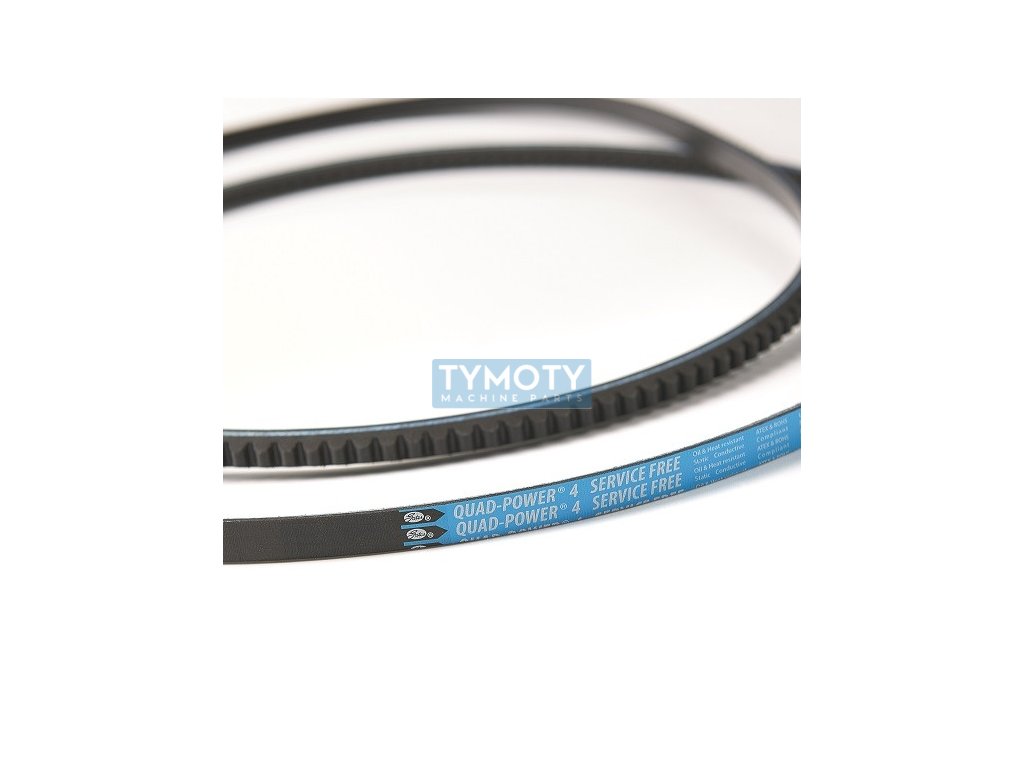

The Gates Quad-Power 4 XPZ 850 Lw (3VX 335) V-belt is specially designed for high-performance applications where reliability and long service life are required. This belt belongs to the QUAD-POWER4 series and is characterized by a narrow XPZ profile, which allows efficient power transmission with smaller pulley dimensions. Its design is cut, which increases flexibility and improves contact with the pulley.

The belt has an inner length (Li) of 812 mm, a calculated length (Lw, Lp) of 850 mm and an outer length (La) of 863 mm. The belt width is 9.7 mm and the height is 8 mm, while the wedge angle is 36 degrees. These dimensions comply with DIN 7753/1 and ISO 4184 standards, which guarantees compatibility with various industrial applications.

The belt material is EPDM (ethylene propylene diene rubber), which provides excellent resistance to temperature extremes, chemicals and ozone. This material allows operation in a temperature range from -50 °C to 130 °C, which makes the belt suitable for a wide range of applications in demanding conditions. The type of cord used in this belt is PES (polyester), which ensures high strength and resistance to stretching.

The manufacturer Gates, known for its quality and innovation in the field of power transmission, provides a reliable solution for drive systems with this product. The XPZ 850 Lw (3VX 335) V-belt is ideal for use in industrial equipment where high efficiency and minimal maintenance are required.
