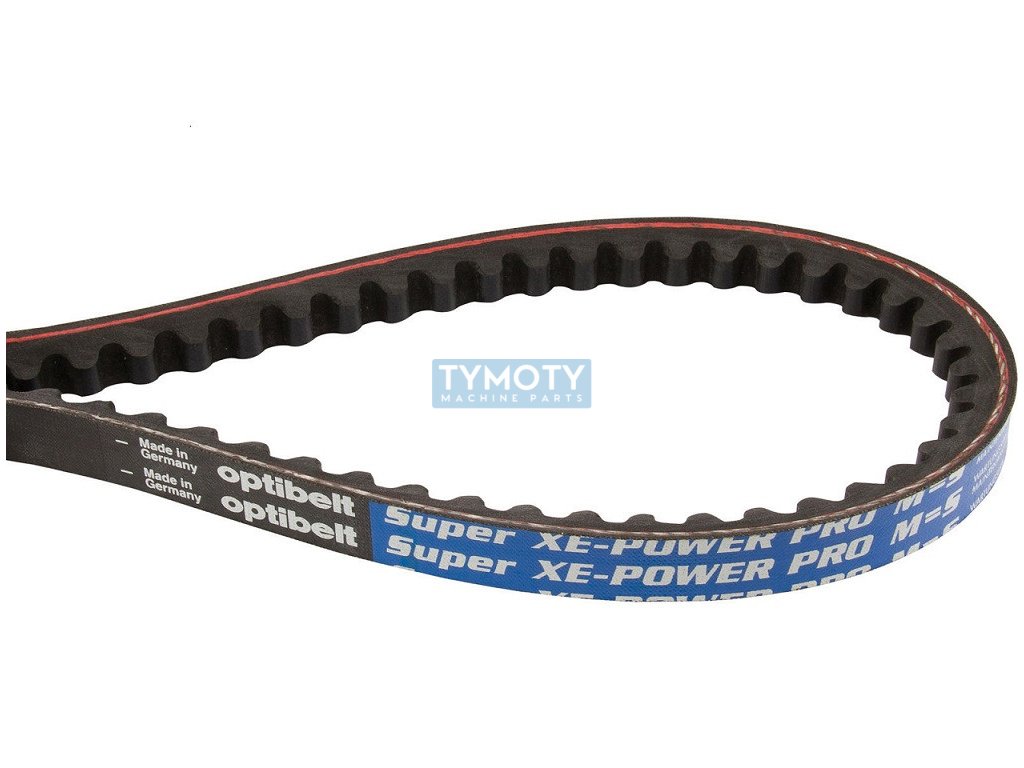

V-belt XPZ 800 Lw (3VX 315) optibelt Super XE-POWER PRO
Code: 258677
Product detailed description
High-performance EPDM rubber belt with an increased temperature range.optibelt SUPER XE-POWER PRE M=S is another revolution in timing V-belts. It has a sophisticated shaped tooth profile that significantly increases durability, flexibility and reliability.
Thanks to high-modulus ropes, it is maintenance-free, which reduces downtime, improves overall efficiency and increases power capacity by up to 20% compared to other high-performance timing V-belts. The EPDM cross-linked rubber with fibers provides the belt with an operating temperature range of -40°C to 120°F.
M=S belts with this designation can be used in matched sets without the need for measuring and matching.
- Polyester Cord - High modulus cord for maintenance-free drives.
- Damping Compound - Red EPDM damping compound bonds the cords to the rubber core.
- Base - Cross-linked rubber molded for strength and stability. and flexibility.
Additional parameters
| Category: | Belts > wedge simple > narrow cut > XPZ (9.7x8) |
|---|---|
| Weight: | 0.184 kg |
| EAN: | 4044978160843 |
| Calculation length Lw, Lp, mm: | 800 |
| Height H (mm): | 8 |
| Inner length Li (mm): | 762 |
| Manufacturer's brand: | Optibelt |
| Maximum temperature °C: | 120 °C |
| Minimum diameter: | 56 |
| Minimum temperature °C: | -40 °C |
| Outer length La (mm): | 813 |
| Product: | V-belt narrow |
| Profile: | XPZ |
| Width B (mm): | 9,7 |
| Číslo výrobce: | 1014251 |
| Značení: | XPZ 800 XEP |
| Řada: | SUPER XE-POWER PRO |
| Typ: | řezaný |
