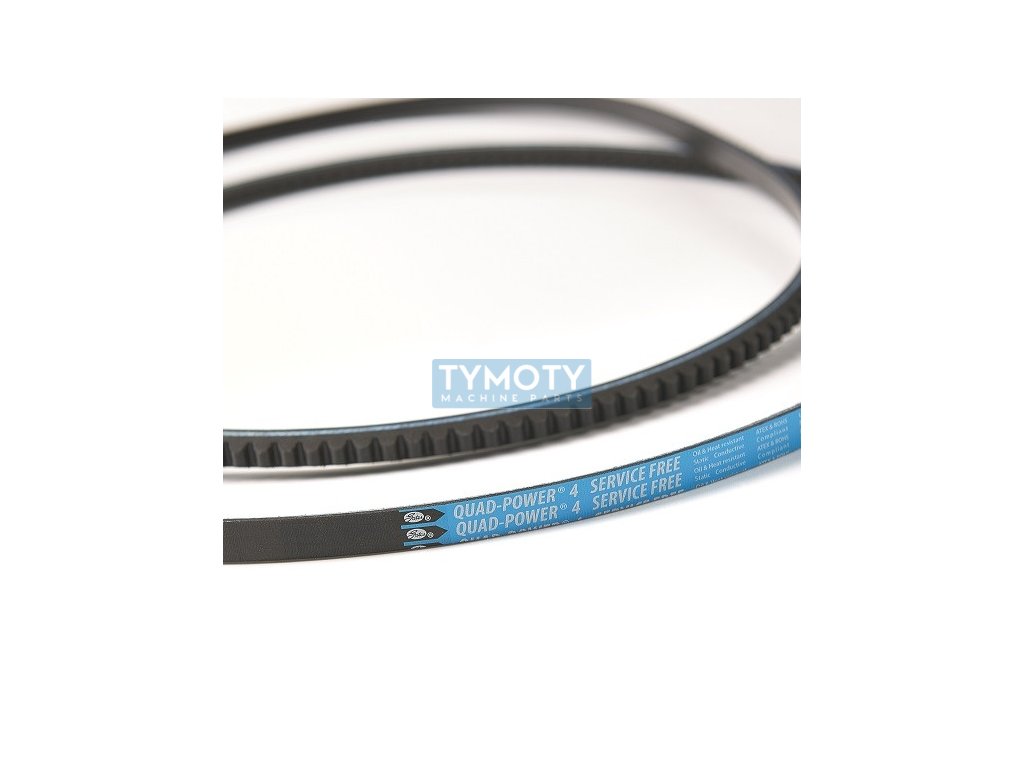

V-belt XPZ 750 Lw (3VX 297) Gates Quad-Power 4
Code: 541952
Product detailed description
The Gates Quad-Power 4 XPZ 750 Lw (3VX 297) V-belt is specially designed for applications requiring high efficiency and reliability. This narrow belt is part of the QUAD-POWER4 series, which is known for its performance and long service life. The belt is made of EPDM (ethylene propylene diene monomer) material, which provides excellent resistance to temperature extremes, with an operating range from -50 °C to 130 °C.With the XPZ profile and cut type construction, the belt has a width of 9.7 mm and a height of 8 mm, which ensures optimal power transmission while minimizing losses. The calculated length Lw is 750 mm, the internal length Li is 712 mm and the external length La reaches 763 mm. The wedge angle is 36°, which contributes to effective grip and stability during operation.
The belt is equipped with a polyester cord (PES), which ensures high tensile strength and resistance to stretching, thereby increasing its service life and reliability in harsh conditions. This product complies with DIN 7753/1 and ISO 4184 standards, which guarantees its compatibility and quality according to international standards.
The XPZ 750 Lw V-belt is ideal for use in industrial equipment where reliable transmission of mechanical energy is required. The manufacturer Gates is known for its precision manufacturing and innovations in the field of drive systems, which ensures that this belt meets the highest requirements for performance and durability.
Additional parameters
| Category: | Belts > wedge simple > narrow cut > XPZ (9.7x8) |
|---|---|
| Weight: | 0.043 kg |
| EAN: | 5414465967504 |
| Angle ( ° ): | 36 |
| Calculation length Lw, Lp, mm: | 750 |
| Cord type: | PES |
| Country of origin: | FR |
| DIN standard: | 7753/1 |
| Height H (mm): | 8 |
| Inner length Li (mm): | 712 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Gates |
| Material: | EPDM |
| Maximum temperature °C: | 130 °C |
| Minimum temperature °C: | -50 °C |
| Outer length La (mm): | 763 |
| Product: | V-belt narrow |
| Profile: | XPZ |
| Width B (mm): | 9,7 |
| Číslo výrobce: | 9643-00750 |
| Značení: | XPZ750/3VX297 QUAD-POWER 4 |
| Řada: | QUAD-POWER4 |
| Typ: | řezaný |
