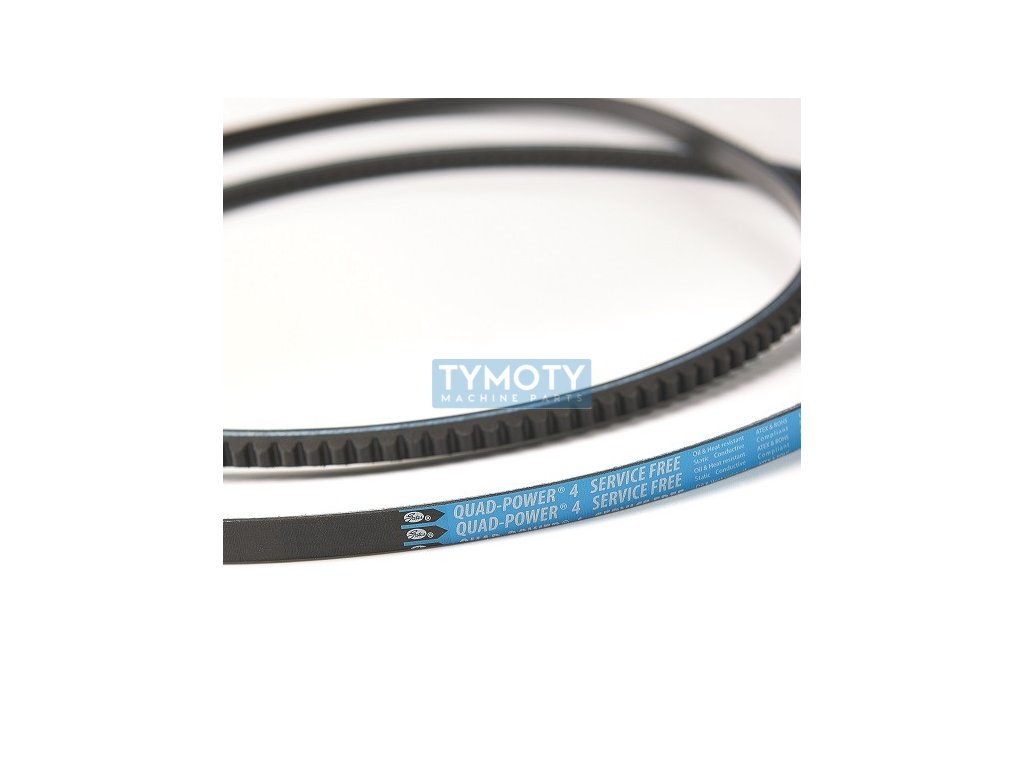

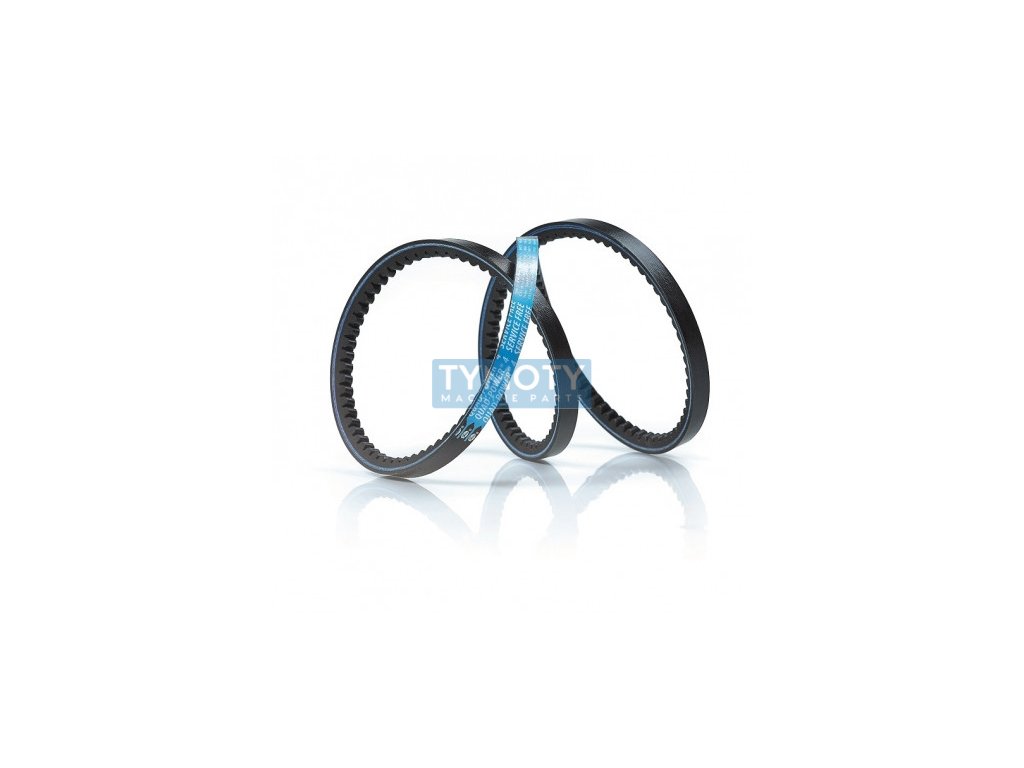

V-belt XPZ 710 Lw (3VX 280) Gates Quad-Power 4

Product detailed description

The Gates Quad-Power 4 XPZ 710 Lw (3VX 280) V-belt is specially designed for applications requiring high efficiency and reliability in demanding conditions. This belt belongs to the QUAD-POWER4 series and is characterized by a narrow XPZ profile, which ensures optimal power transmission with minimal energy losses.

The belt dimensions are precisely defined: width 9.7 mm, height 8 mm and calculated length Lw is 710 mm. The inner length Li is 672 mm and the outer length La reaches 723 mm. The belt is made of EPDM (ethylene-propylene-diene monomer), which provides excellent resistance to temperature extremes, with an operating range from -50 °C to 130 °C. This material also guarantees high resistance to ozone and chemicals, which extends the life of the belt in harsh environments.

The V-belt is of the cut type, which means that its side surfaces are modified for better contact with the pulleys, thus increasing its efficiency and reducing wear. The XPZ profile is designed with an angle of 36°, which allows for optimal seating in the pulley grooves and improves torque transmission.

The belt is equipped with a polyester cord (PES), which provides high strength and resistance to stretching, ensuring dimensional stability throughout the product's life. This V-belt complies with DIN 7753/1 and ISO 4184 standards, which confirms its quality and compatibility with international standards.

The manufacturer of this belt is the renowned company Gates, known for its precise manufacturing and innovative solutions in the field of mechanical energy transmission. The product designation XPZ710/3VX280 QUAD-POWER 4 and manufacturer number 9643-00710 allow for easy identification and ordering of this component for your needs.
