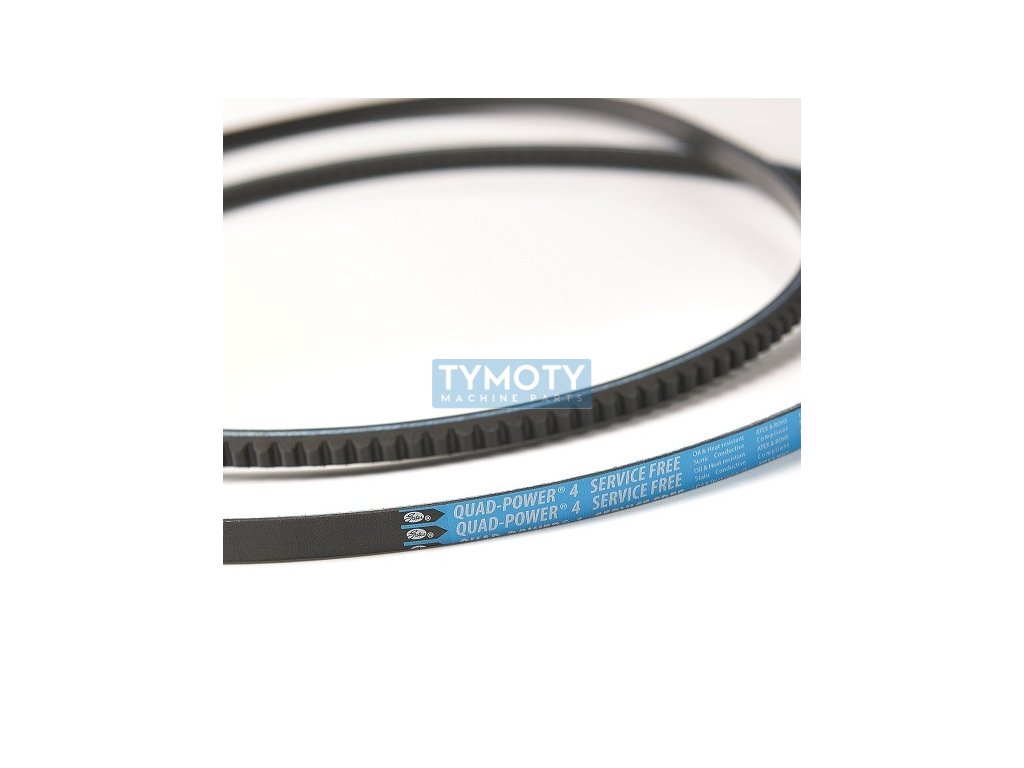

V-belt XPZ 1900 Lw (3VX 750) Gates Quad-Power 4
Code: 542017
Product detailed description
The Gates Quad-Power 4 XPZ 1900 Lw (3VX 750) V-belt is a high-performance component designed for the transmission of mechanical energy in industrial applications. This belt belongs to the QUAD-POWER4 series, which is known for its reliability and long service life. The belt is made of EPDM (ethylene-propylene-diene monomer) material, which provides excellent resistance to temperature extremes, chemicals and ozone. It is able to operate in a temperature range from -50 °C to 130 °C, which makes it an ideal choice for various operating conditions.This V-belt has an XPZ profile, which is characterized by a narrow design with cut sides, which improves its flexibility and power transmission. The belt width is 9.7 mm and the height is 8 mm, while its calculated length Lw is 1900 mm. The inner length Li is 1862 mm and the outer length La is 1913 mm. These dimensions comply with DIN 7753/1 and ISO 4184 standards, ensuring compatibility with various types of pulleys and drives.
The belt is equipped with a PES cord, which ensures high strength and tear resistance, contributing to the overall reliability of the drive. The wedge angle is 36°, which is optimized for efficient power transmission and minimizing friction losses. The manufacturer Gates is a renowned leader in the field of belt production, which guarantees high quality and reliability of this product. The manufacturer's designation is XPZ1900/3VX750 QUAD-POWER 4 and the manufacturer's number is 9643-01900. This V-belt is ideal for applications where high efficiency and long service life are required under difficult operating conditions.
Additional parameters
| Category: | Belts > wedge simple > narrow cut > XPZ (9.7x8) |
|---|---|
| Weight: | 0.098 kg |
| EAN: | 5414465969232 |
| Angle ( ° ): | 36 |
| Calculation length Lw, Lp, mm: | 1900 |
| Cord type: | PES |
| Country of origin: | FR |
| DIN standard: | 7753/1 |
| Height H (mm): | 8 |
| Inner length Li (mm): | 1862 |
| ISO standard: | 4184 |
| Manufacturer's brand: | Gates |
| Material: | EPDM |
| Maximum temperature °C: | 130 °C |
| Minimum temperature °C: | -50 °C |
| Outer length La (mm): | 1913 |
| Product: | V-belt narrow |
| Profile: | XPZ |
| Width B (mm): | 9,7 |
| Číslo výrobce: | 9643-01900 |
| Značení: | XPZ1900/3VX750 QUAD-POWER 4 |
| Řada: | QUAD-POWER4 |
| Typ: | řezaný |
